Cushman Hauler 4x4
| Make | Cushman |
| Model | Hauler 4x4 |
| Type | Crawler Dozers |
How can we help?
Description
Overview
Bring more power and durability to your job site with the new Cushman® Hauler® 4x4 series of vehicles. Available in a quiet 50-hp gas or robust 25-hp diesel engine with a 1500-lb load capacity, these vehicles will tackle your most strenuous tasks without breaking a sweat.
Models
Model Table

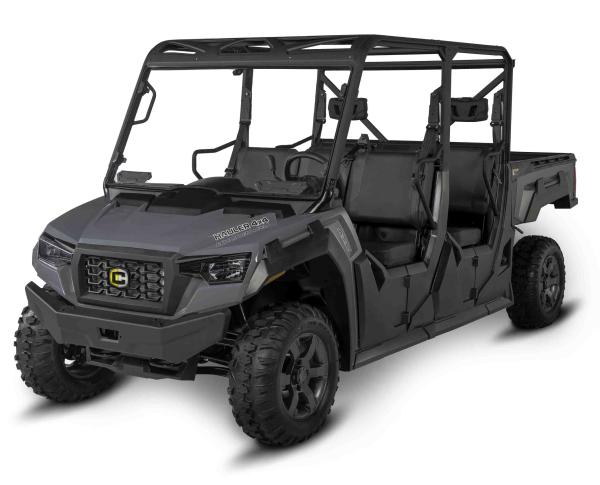

| Hauler 4x4 Gas | Hauler 4x4 Diesel | Hauler 4x4 Crew Gas | Hauler 4x4 Crew Diesel | |
|---|---|---|---|---|
| Power Source | 50 HP, 812 cc, 4 Stroke Gas Engine | 25 HP (18.6 kW), 1.03L Liquid Cooled, 3 Cylinder Diesel Engine | 50 HP, 812 cc, 4 Stroke Gas Engine | 25 HP (18.6 kW), 1.03L Liquid Cooled, 3 Cylinder Diesel Engine |
| Valve Train | 3 Cylinder DOHC | 3 Cylinder | 3 Cylinder DOHC | 3 Cylinder |
| Horsepower (KW) | 50 HP, (37.3 kW) | 25 HP, 1028 cc | 50 HP, (37.3 kW) | 25 HP, 1028 cc |
| Curb Weight | 1,657 lb (751.6 kg) | 1,608 lb (729.4 kg) | 1,931 lb (875.9 kg) | 1,931 lb (875.9 kg) |
Specifications
- Air Cleaner: 2 Stage Air Cleaner
- Battery (Qty/Type): One 12-Volt Maintenance Free
- Bed Load Capacity: 1000 lb (453.6 kg)
- Body & Finish: TPO Molded in Color
- Cargo Deck Capacity: 14.68 cu. ft. (0.42 cu. m.)
- Cargo Deck Material: Poly
- Cooling System: Liquid with Fan
- Curb Weight: 1,657 lb (751.6 kg)
- Drive Train: Continuously Variable Transmission (CVT)
- Electrical System: 12V, Alternator
- Frame: Welded Steel with E-Shield™ ecoat plus DuraShield™ Powder Coat
- Fuel Capacity: 10 gal (37.9 L)
- Gear Selection: Mechanical, Steering Column Mounted
- Ground Clearance: 10.75 in (27.4 cm)
- Horsepower (KW): 50 HP, (37.3 kW)
- Key or Pedal Start: Key
- Oil Filter: Automotive, Screw On
- Overall Height: 74 in (188 cm)
- Overall Length: 126 in (320 cm)
- Overall Width: 63 in (160 cm)
- Parking Brake: Parking Gear, Activated Via Shifter
- Power Source: 50 HP, 812 cc, 4 Stroke Gas Engine
- Seating Capacity: 3-Person
- Service Brake: Dual Piston Front/Single Piston Rear Calipers
- Speed: 25 mph (40.2 kph)
- Standard Color: Dynamic Charcoal
- Steering: Rack and Pinion, Tilt Steering Wheel
- Suspension: (Front) Double A-Arm with 10 in (25.4 cm) Travel; (Rear) Double A-Arm with 9.5 in (24.1 cm) Travel
- Tires: 25 x 10.5 - 12 All Terrain
- Towing Capacity: 2000 lb (907.2 kg)
- Transaxle: 2/4WD Front, Selectable Locking Rear
- Valve Train: 3 Cylinder DOHC
- Vehicle Load Capacity: 1500 lb (680.4 kg)
- Wheel Base: 85 in (215.9 cm)
- Wheel Track: 51 in (129.5 cm)
Features
- 14.72-cu-ft Cargo Bed
- 1,000-lb Bed Load Capacity
- 2,000-lb Towing Capacity
- 1,500-lb Vehicle Load Capacity
- 6-Passenger
- 50-hp Gas Engine
- 25-hp Diesel Engine
- Electronic Power Steering
- 3-Passenger
