Cushman Hauler 800X
| Make | Cushman |
| Model | Hauler 800X |
| Type | Crawler Dozers |
How can we help?
Description
Overview

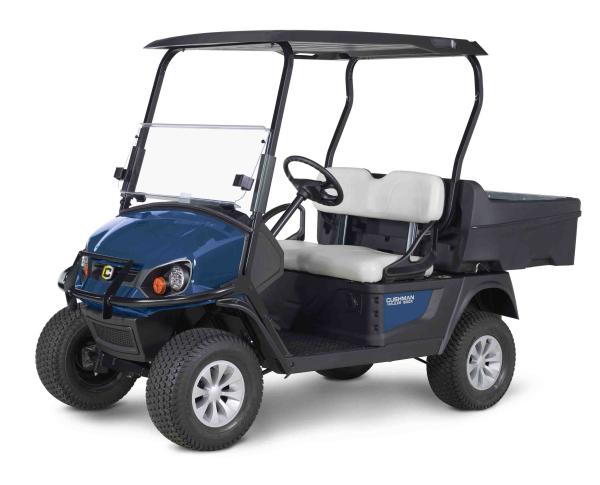

The Hauler 800X approaches every job with the perfect mix of toughness and real-world utility. Available with your choice of a gas or electric powertrain, rugged tires and a lifted suspension, it's built to help you get the job done.
Models
Model Table
| Hauler 800X EFI Gas | Hauler 800X Electric | |
|---|---|---|
| Ground Clearance | 5.5 in (14.0 cm) | 5.5 in (14 cm) |
| Power Source | 4-Cycle, 24.5 ci (401cc) Cylinder | 48V AC |
| Valve Train | Single Cylinder OHV | - |
| Horsepower (KW) | 13.5 hp (10.1 kW) | 4.4 hp (3.3 kW) Continuous |
| Electrical System | Starter/Generator. Solid State Reg. | 48V |
| Battery (Qty/Type) | One, 12V Maintenance Free | Six, 8V Deep Cycle |
| Battery Charger | - | 48V DC PowerWise QE, 120V AC, UL/CSA |
| Air Cleaner | Replaceable Dry Cartridge | - |
| Lubrication | Pressurized Oil System | - |
| Oil Filter | Spin-On | - |
| Cooling System | Air Cooled | - |
| Fuel Capacity | 5.6 Gallon (21.2 L) Tank | - |
| Speed Controller | - | 235 Amp AC Controller |
| Drive Train | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
| Gear Selection | Forward - Reverse | Dash-Mounted Forward-Neutral-Reverse |
| Rear Axle Ratio | 11.47: 1 (Forward) 14.53: 1 (Reverse) | 16.99: 1 |
| Weight w/o Batteries | 800 lb (362.9 kg) | 756 lb (342.9 kg) |
| Curb Weight | 830 lb (376 kg) | 1122 lb (508.9 kg) |
| Towing Capacity | 500 lb (226.8 kg) Max Load | 500 lb (227 kg) Max Load |
| Outside Clearance Circle | 18.9 ft (5.8 m) | 18.9 ft (5.8 m) |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) | Leaf Springs w/ Hydraulic Shock Absorbers |
Specifications
- Air Cleaner: Replaceable Dry Cartridge
- Battery (Qty/Type): One, 12V Maintenance Free
- Battery Charger: -
- Bed Load Capacity: 325 lb (147.4 kg)
- Body & Finish: Injection Molded TPO (Front) / Injection Molded PP (Rear)
- Cargo Deck Capacity: 8.4 cu ft (0.24 m3)
- Cargo Deck Material: Roto-Molded Polyethylene
- Cooling System: Air Cooled
- Curb Weight: 830 lb (376 kg)
- Drive Train: Continuously Variable Transmission (CVT)
- Electrical System: Starter/Generator. Solid State Reg.
- Frame: Welded Steel w/ E-Shield e-coat plus DuraShield™ Powder Coat
- Fuel Capacity: 5.6 Gallon (21.2 L) Tank
- Gear Selection: Forward - Reverse
- Ground Clearance: 5.5 in (14.0 cm)
- Horsepower (KW): 13.5 hp (10.1 kW)
- Key or Pedal Start: Pedal
- Lubrication: Pressurized Oil System
- Oil Filter: Spin-On
- Outside Clearance Circle: 18.9 ft (5.8 m)
- Overall Height: 51 in (129.5 cm) ( w/o Roof) / 74 in (188 cm) (w/ Canopy)
- Overall Length: 110 in (279.4 cm)
- Overall Width: 49 in ( 125 cm)
- Parking Brake: Self-Compensating,Single-Point Engagement
- Power Source: 4-Cycle, 24.5 ci (401cc) Cylinder
- Rear Axle Ratio: 11.47: 1 (Forward) 14.53: 1 (Reverse)
- Seating Capacity: 2-Person
- Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
- Speed: 16.5 mph ± 0.5 mph (26.5 kph ± 0.8 kph)
- Standard Color: Patriot Blue, Forest Green
- Steering: Self-Compensating Rack & Pinion
- Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
- Tires: 20 x 8-10 (6 Ply Rated)
- Towing Capacity: 500 lb (226.8 kg) Max Load
- Transaxle: Differential w/ Helical Gears
- Valve Train: Single Cylinder OHV
- Vehicle Load Capacity: 725 lb (328.9 kg)
- Weight w/o Batteries: 800 lb (362.9 kg)
- Wheel Base: 65.5 in (166.4 cm)
- Wheel Track: 37 in (94.0 cm) Front / 38 in (96.5 cm) Rear
Features
- 13.5-hp EFI Gas Engine
- 8.4-cu-ft Cargo Bed
- 325-lb Bed Load Capacity
- 48V AC Electric Drivetrain
- 725-lb Vehicle Load Capacity
- 2-Passenger Seating
