Cushman Shuttle 2+2
| Make | Cushman |
| Model | Shuttle 2+2 |
| Type | Crawler Dozers |
How can we help?
Description
Overview

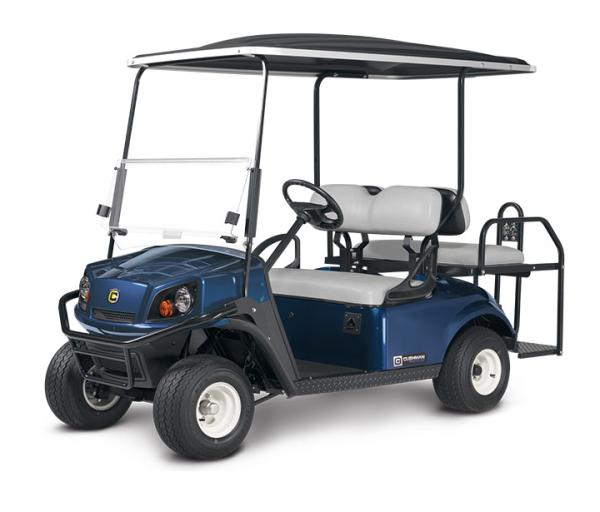

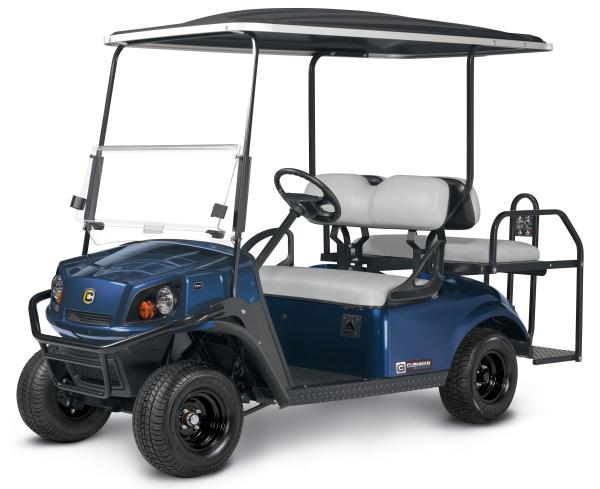

Versatility rules the day with the Shuttle™ 2+2 personnel carrier. With a rear seat that converts to a flat cargo area, you can haul guests, gear and everything in between. Standard headlights and brush guard keep you prepared for whatever the day holds.
Models
Model Table
| Shuttle 2+2 Gas | Shuttle 2+2 48V DC Electric | Shuttle 2+2 72V AC Electric | |
|---|---|---|---|
| Cargo Deck Capacity | 32.0 in (81 cm) | 250 lb | 250 lb |
| Cargo Deck Material | 40.0 in (102 cm) W x 32.0 in (81 cm) L | High Density Polyethylene | High Density Polyethylene |
| Power Source | 4-Cycle, 24.5 ci (401cc) | 48V DC | 72V AC |
| Valve Train | Single Cylinder OHV | Shunt Wound | AC Induction |
| Horsepower (KW) | 13.5 hp (10.1 kW) | 3.0 HP (2.2kW) Continuous | 22.4 HP |
| Electrical System | Starter/Generator. Solid State Regulator | 48V | 72V |
| Battery (Qty/Type) | One, 12V Maintenance Free | Six, 8V Deep Cycle | Six, 12V Deep Cycle |
| Battery Charger | - | 48 VDC Delta Q, 120/230V AC, UL/CSA | 72V DC Delta Q, 120/230V AC, UL/CSA |
| Air Cleaner | Replaceable Dry Cartridge | - | - |
| Lubrication | Pressurized Oil System | - | - |
| Oil Filter | Spin-On | - | - |
| Cooling System | Air Cooled | - | - |
| Fuel Capacity | 6 Gallon (22.7 L) Tank | - | - |
| Speed Controller | - | 250 Amp Solid State Controller | 350 Amp Solid State Controller |
| Drive Train | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive | Motor Shaft Direct Drive |
| Rear Axle Ratio | 11.47:1 (Forward) 15.78:1 (Reverse) | 12.44:1 | 17:1 |
| Weight w/o Batteries | 861 lb (391 kg) | 658 lb (298 kg) | 794 lb (360 kg) |
| Curb Weight | 896 lb (406 kg) | 1036 lb (470 kg) | 1268 lb (575 kg) |
Specifications
- Air Cleaner: Replaceable Dry Cartridge
- Battery (Qty/Type): One, 12V Maintenance Free
- Battery Charger: -
- Bed Load Capacity: 250 lb (113 kg)
- Body & Finish: Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear)
- Cargo Deck Capacity: 32.0 in (81 cm)
- Cargo Deck Material: 40.0 in (102 cm) W x 32.0 in (81 cm) L
- Cooling System: Air Cooled
- Curb Weight: 896 lb (406 kg)
- Drive Train: Continuously Variable Transmission (CVT)
- Electrical System: Starter/Generator. Solid State Regulator
- Frame: Welded Steel w/ DuraShield™ Powder Coat
- Fuel Capacity: 6 Gallon (22.7 L) Tank
- Gear Selection: Dash-Mounted Forward-Neutral-Reverse
- Ground Clearance: 4.5 in (11 cm)
- Horsepower (KW): 13.5 hp (10.1 kW)
- Key or Pedal Start: Pedal
- Lubrication: Pressurized Oil System
- Oil Filter: Spin-On
- Outside Clearance Circle: 19 ft ( 5.8 m)
- Overall Height: 46.5 in (118 cm) (Top of steering wheel) 77.0 in (196cm) (Top of Sun Canopy)
- Overall Length: 108.5 in (276 cm)
- Overall Width: 48.5 in (123 cm)
- Parking Brake: Self-Compensating, Single-Point Engagement
- Power Source: 4-Cycle, 24.5 ci (401cc)
- Rear Axle Ratio: 11.47:1 (Forward) 15.78:1 (Reverse)
- Seating Capacity: 4-Person
- Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
- Speed: 14 mph +/- 0.5 mph (22.5 kph +/- 0.8 kph)
- Standard Color: Patriot Blue
- Steering: Self-Compensating Rack & Pinion
- Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
- Tires: 18 x 8.50 - 8 (4-Ply Rated)
- Transaxle: Differential w/ Helical Gears
- Valve Train: Single Cylinder OHV
- Vehicle Load Capacity: 800 lb (363 kg)
- Weight w/o Batteries: 861 lb (391 kg)
- Wheel Base: 65.5 in (166 cm)
- Wheel Track: 38.0 in (97 cm) Front 38.5 in (98 cm) Rear
Features
- 4-Passenger Seating
- 72V AC Electric Drivetrain
- 250-lb Deck Load Capacity
- 48V DC Electric Drivetrain
- 800-lb Vehicle Load Capacity
- 13.5-hp Kawasaki® Gas Engine
