Cushman Shuttle 6
| Make | Cushman |
| Model | Shuttle 6 |
| Type | Crawler Dozers |
How can we help?
Description
Overview

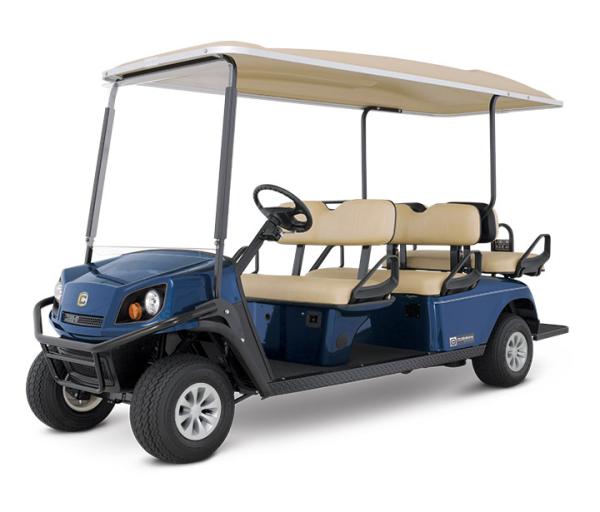

Take your people-moving power to the next level with the six-passenger Shuttle™ 6 personnel carrier. With spacious bench seating, headlights for early morning or late nights, and your choice of gas or electric powertrains, it always delivers a safe and comfortable ride.
Models
Model Table
| Shuttle 6 EFI Gas | Shuttle 6 Electric | |
|---|---|---|
| Standard Color | Patriot Blue | Ivory |
| Power Source | 4-Cycle, 24.5 ci (401cc) | 72V DC |
| Valve Train | Single Cylinder OHV | 22.4 hp (16.7 kW) Intermittent |
| Horsepower (KW) | 13.5 hp (10.1 kW) | 72V |
| Electrical System | Starter/Generator. Solid State Reg. | Six, 12V Deep Cycle |
| Battery Charger | One, 12V Maintenance Free | 1000 Watt, 72V, 120/230V VAC UL Listed |
| Air Cleaner | Replaceable Dry Cartridge | - |
| Lubrication | Pressurized Oil System | - |
| Oil Filter | Spin-On | - |
| Cooling System | Air Cooled | - |
| Fuel Capacity | 6 Gallon (22.7 L) Tank | - |
| Speed Controller | - | 350 Amp AC |
| Drive Train | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
| Gear Selection | Forward - Reverse | Dash-Mounted Forward-Neutral-Reverse |
| Rear Axle Ratio | 11.47:1 (Forward) 14.35:1 (Reverse) | 17:1 |
| Weight w/o Batteries | - | 964 lb (437 kg) |
| Curb Weight | 1164 lb (528 kg) | 1456 lb (660 kg) |
| Speed | 14 mph ± 0.5 mph (22.5 kph ± 0.8 kph) | High Speed 16.5 mph ± 0.5 mph (26.4 kph ± 0.8 kph), Low Speed 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum | Rear wheel mechanical self-adjusting drum, Regenerative braking |
| Tires | 18 x 8.5 - 8 (4 Ply Rated) | 18 x 8.50 - 8 (4 Ply Rated) |
Specifications
- Air Cleaner: Replaceable Dry Cartridge
- Battery Charger: One, 12V Maintenance Free
- Body & Finish: Injection Molded TPO
- Cooling System: Air Cooled
- Curb Weight: 1164 lb (528 kg)
- Drive Train: Continuously Variable Transmission (CVT)
- Electrical System: Starter/Generator. Solid State Reg.
- Frame: Welded Steel w/ DuraShield™ Powder Coat
- Fuel Capacity: 6 Gallon (22.7 L) Tank
- Gear Selection: Forward - Reverse
- Ground Clearance: 4.3 in (11 cm)
- Horsepower (KW): 13.5 hp (10.1 kW)
- Key or Pedal Start: Pedal
- Lubrication: Pressurized Oil System
- Oil Filter: Spin-On
- Outside Clearance Circle: 25.5 ft (7.8 m)
- Overall Height: 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof)
- Overall Length: 136.0 in (345 cm)
- Overall Width: 48.5 in (123 cm)
- Parking Brake: Self-Compensating, Single-Point Engagement
- Power Source: 4-Cycle, 24.5 ci (401cc)
- Rear Axle Ratio: 11.47:1 (Forward) 14.35:1 (Reverse)
- Seating Capacity: 6-Person
- Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
- Speed: 14 mph ± 0.5 mph (22.5 kph ± 0.8 kph)
- Speed Controller: -
- Standard Color: Patriot Blue
- Steering: Self-Compensating Rack & Pinion
- Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
- Tires: 18 x 8.5 - 8 (4 Ply Rated)
- Transaxle: Differential w/ Helical Gears
- Valve Train: Single Cylinder OHV
- Vehicle Load Capacity: 1200 lb (544 kg)
- Wheel Base: 93.5 in (237 cm)
- Wheel Track: 34.2 in (87 cm) Front 38.0 in (97 cm) Rear
Features
- 1,200-lb Vehicle Load Capacity
- 6-Passenger Seating
- 72V Electric Drivetrain
- 13.5-hp EFI Gas Engine
