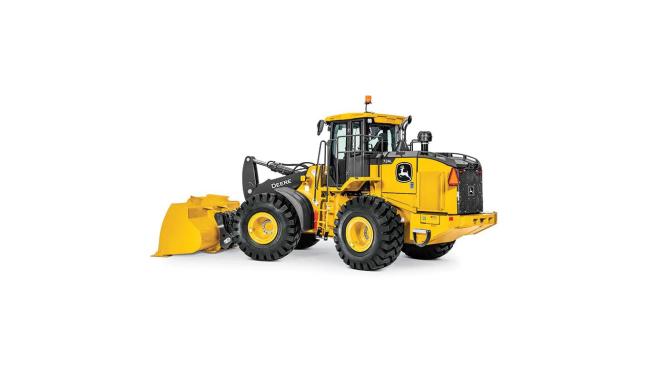

John Deere 724L Wheel Loader
Mid-Size Wheel Loaders
How can we help?
(555) 555-5555
Features
-
Bucket Capacity: 3.1–3.8 m³ (4.0–5.0 cu. yd.)
-
Engine Net Power: 200 kW (268 hp)
-
Operating Weight: 19,825-20,459 kg (43,707-45,103 lb.)
Specifications
CAPACITIES - Alternator Output, Amp: |
100 |
CAPACITIES - Axle - Front, ltr (gallons (US)): |
22 (5.75) |
CAPACITIES - Axle - Rear, ltr (gallons (US)): |
22 (5.75) |
CAPACITIES - Breakout - Bucket , kgf (lbf): |
15988 (35248) |
CAPACITIES - Bucket Capacity - Smallest, m³ (yd³): |
3.6 (4.75) |
CAPACITIES - Fuel Tank, ltr (gallons (US)): |
351 (92.6) |
CAPACITIES - Heaped Capacity, m³ (yd³): |
3.6 (4.75) |
CAPACITIES - Hydraulic Tank, ltr (gallons (US)): |
105.2 (27.8) |
CAPACITIES - Largest bucket capacity, m³ (yd³): |
3.8 (5) |
CAPACITIES - Pump Flow - 1, lt/min (gallons (US) / min): |
310 (82) |
CAPACITIES - Pump Type: |
Piston |
CAPACITIES - Ride Control System: |
Yes |
CAPACITIES - System Pressure, bar (PSI): |
275.8 (4000) |
CAPACITIES - System Voltage, V: |
24 |
CAPACITIES - Transmission, ltr (gallons (US)): |
23 (6.075) |
DIMENSIONS - Ground clearance, mm (inches): |
386 (15.2) |
DIMENSIONS - Height - Over Cab, mm (ft/in): |
3450 (11 ft 4 in) |
DIMENSIONS - Height - Pivot Pin, mm (ft/in): |
4160 (13 ft 8 in) |
DIMENSIONS - Length - Including Bucket, mm (ft/in): |
8420 (27 ft 8 in) |
DIMENSIONS - Reach - At 2130mm 45° Dump, mm (ft/in): |
1680 (5 ft 6 in) |
DIMENSIONS - Turning Circle - Maximum, mm (ft/in): |
13100 (42 ft 10 in) |
DIMENSIONS - Wheelbase, mm (ft/in): |
3210 (10 ft 10 in) |
DIMENSIONS - Width Over tires - Std, mm (ft/in): |
2880 (9 ft 5 in) |
DRIVELINE - Displacement, ltr (Inches³): |
9 (548) |
DRIVELINE - Emission Rating: |
Tier 4 / Stage V |
DRIVELINE - Engine Manufacturer : |
John Deere |
DRIVELINE - Engine Model: |
PowerTech PSS 6090 |
DRIVELINE - Engine Output - Net, kW (hp): |
200 (268) |
DRIVELINE - Front Differential Type: |
Locking |
DRIVELINE - Parking Brake - Type: |
Wet Multi Disc - Transmission |
DRIVELINE - Rated Speed, rpm: |
1800 |
DRIVELINE - Rear Differential Type: |
Open |
DRIVELINE - Service Brake - Actuation: |
Hydraulic |
DRIVELINE - Service Brake - Location: |
Axle Inboard |
DRIVELINE - Service Brake - Type: |
Wet Disc |
DRIVELINE - Tire size - Standard: |
23.5 R25 |
DRIVELINE - Torque Rise, %: |
48 |
DRIVELINE - Torque, Nm (lbf / ft): |
1325 (977) |
DRIVELINE - Transmission Type: |
Powershift |
WEIGHTS - Operating Weight, kg (lbs): |
19825 (43707) |
EH Controls
Control up to six functions without letting go of the ergonomically designed joystick. Program two-multifunction buttons on the bucket lever to handle any of up to 10 functions.
Buckets & Linkage
New bucket and linkage designs improve load leveling, material retention and visibility. Lift path on all Z-Bar linkages is now near parallel.
Engine
EPA Tier 4/EU Stage V PowerTech™ engine
Ground-Level Service
All daily service points including fuel are conveniently grouped on the left side of the machine at ground level, for easy access.
Redesigned Cab
Operator station is spacious and comfortable. It features extra legroom, additional storage and an adjustable seat. A premium cab with a larger monitor and a heated/ventilated seat is optional.
