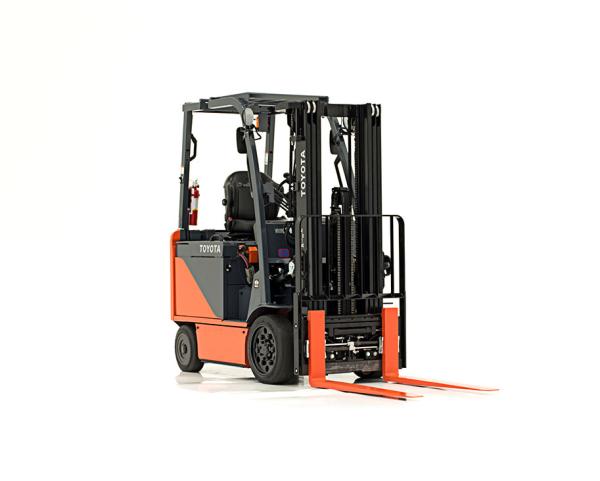

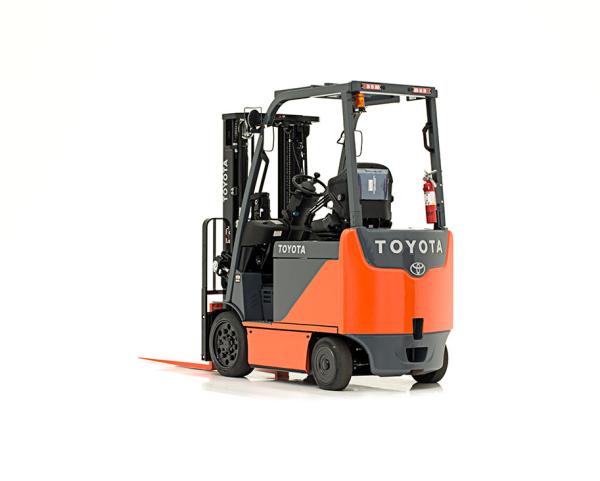

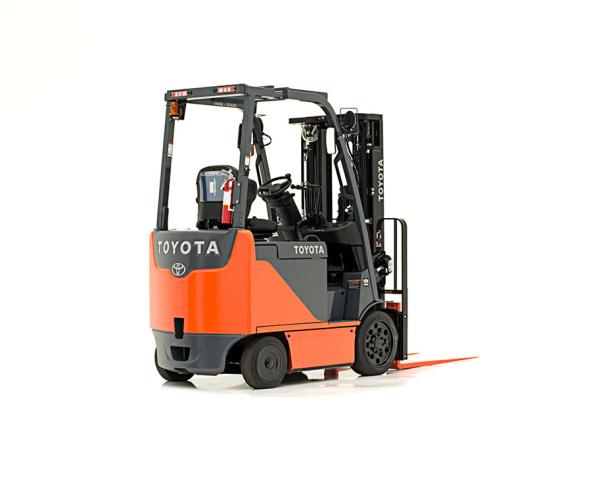

Toyota Core Electric Forklift
| Make | Toyota |
| Model | Core Electric Forklift |
| Type | 3 Wheel Electric |
How can we help?
Description
Overview
The Toyota Core Electric Forklift is an ideal compact four-wheel electric lift truck solution for most indoor and warehouse applications. The Core Electric Forklift is capable of moving most any standard load while maintaining the ability to fully operate in spaces as small as 11 feet wide. And Toyota designed and built AC motors provide new levels of performance, efficiency, and reliability to maximize your productivity and return on investment.
T-Matics Fleet Management
Toyota’s Fleet Management System, T-Matics, utilizes a Vehicle Management System to track and report forklift operating behavior and/or the operating behavior of the individual forklift operator, including utilization rates, impacts, location and more. Available on any size forklift fleet, T-Matics provides actionable data to make better operational decisions.
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Core Electric Forklift operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Core Electric Forklift can be an asset for your company for years to come.
Models
Core Electric Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8FBC15U | 3,000 | 11.5 (36V), 11.5 (48V) | 88 (36V), 108 (48V) | 20 (36V), 21 (48V) | 82.1 |
| 8FBC18U | 3,500 | 11.3 (36V), 11.3 (48V) | 79 (36V), 100 (48V) | 18 (36V), 20 (48V) | 82.1 |
| 8FBCU20 | 4,000 | 9.9 (36V), 11.5 (48V) | 67 (36V), 89 (48V) | 25 (36V), 23 (48V) | 87.2 |
| 8FBCU20-COMP | 4,000 | 9.9 (36V), 11.5 (48V) | 67 (36V), 89 (48V) | 25 (36V), 23 (48V) | 85.2 |
| 8FBCHU25 | 5,000 | 9.6 (36V), 11.5 (48V) | 59 *36V), 79 (48V) | 21 (36V), 24 (48V) | 93.1 |
| 8FBCU25 | 5,000 | 9,6 (36V), 11.5 (48V) | 59 (36V), 79 (48V) | 21 (36V), 19 (48V) | 87.6 |
| 8FBCU25-COMP | 5,000 | 9.6 (36V), 11.5 (48V) | 59 (36V), 79 (48V) | 21 (36V), 19 (48V) | 85.6 |
| 8FBCU28 | 5,500 | 9.3 (36V), 11.5 (48V) | 55 (36V), 73 (48V) | 17 (36V), 20 (48V) | 90.3 |
| 8FBCU30 | 6,000 | 9.0 (36V), 11.2 (48V) | 51 (36V), 69 (48V) | 17 (36V), 20 (48V) | 94.9 |
| 8FBCU32 | 6,500 | 9.0 (36V), 11.2 (48V) | 47 (36V), 65 (48V) | 17 (36V, 19 (48V) | 96.4 |
Specifications
- Length to Forkface: 79.9 - 91.3 in
- Load Capacity: 3,000 - 6,500 lb. Load Capacity
- Overall Width: 41.9 - 43.7 in
- Overhead Guard Height: 88 in
- Travel Speed Full Load: 9 - 11.5 mph Travel Speed Full Load
- Voltage: 36/ 48 Voltage
Features
- Foot Activated Parking Brake
- 11.8″ diameter two-spoke steering wheel
- Planned Maintenance Indicator
- 11-12′ aisle widths
- Hydrostatic (On Demand) Power Steering
- Easy-access Controllers
- Adjustable front headlights
- One-way automatic fork leveling
- Three forms of energy regeneration
- System of Active Stability (SAS)
- Toyota designed AC motors
- Lift Height: 23 FT.
- Up to 23′ Lift Height
- Dual operator assist grips
- Manual Return to Neutral
- Punched plate entry/exit step
- Operator Presence Sensing System (OPSS)
- Battery compartment hood assist
- AC motors (no brushes or commutator)
- Selling Electric Forklift: No. 1
- Bolt-on Overhead Guard
- Four-way adjustable full-suspension seat
- Options: 130+
- Up to 6,500 lbs. Lifting Capacity
- Heavy-duty, non-slip floor mat
- Cowl-mounted hydraulic controls
- Digital (LCD) multifunction display
- Easy-access hydraulic motor
- Key Lowering Interlock
- Electric directional shift control
- Easy-access, no-tools-required floorboard
