Toyota Electric Pneumatic Forklift
| Make | Toyota |
| Model | Electric Pneumatic Forklift |
| Type | 3 Wheel Electric |
How can we help?
Description
Overview

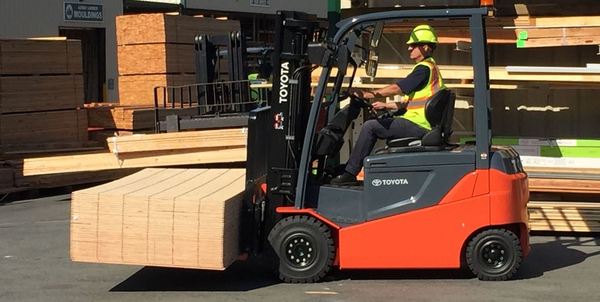

Want to maintain an all electric fleet, but need a rugged, outdoor solution? Look no further than Toyota’s Electric Pneumatic Forklift. Powerful and rugged enough to perform similar to internal combustion counterparts, but running off a battery, Toyota’s Electric Pneumatic Forklift maintains clean air and low maintenance, but supports powerful, outdoor, traditionally IC applications.
Outdoor Electric Forklift Solution
The Toyota Electric Pneumatic is a green, outdoor forklift solution. Instead of supplementing your indoor electric fleet with IC counterparts for your outdoor application, the Electric Pneumatic provides an all-electric option for both indoor and outdoor use.
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or another motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Electric Pneumatic Forklift operating at peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Electric Pneumatic Forklift can be an asset for your company for years to come.
Models
Electric Pneumatic Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 05-8FBM20T | 4,000 | 11.8 | 96 | 26 | 95.4 |
| 05-8FBM25T | 5,000 | 11.8 | 91 | 24 | 100.7 |
| 05-8FBMK25T | 5,000 | 11.8 | 91 | 25 | 95.4 |
| 05-8FBM30T | 6,000 | 11.8 | 75 | 22 | 101.5 |
| 05-8FBMK30T | 6,000 | 11.8 | 75 | 21 | 97.3 |
| 05-8FBM35T | 7,000 | 11.8 | 69 | 19 | 102.6 |
| 8FBM40T | 8,000 | 11 | 68.9 | 15 | 120.5 |
| 8FBM45T | 9,000 | 11 | 68.9 | 14 | 121.1 |
| 8FBM50T | 11,000 | 11 | 65 | 13 | 126.5 |
Specifications
- Length to Forkface: 89.9 - 120.9 in
- Load Capacity: 4,000 - 11,000 lb. Load Capacity
- Overall Width: 47 - 56.7 in
- Overhead Guard Height: 87.2 - 92.9 in
- Travel Speed Full Load: 11 - 11.8 mph Travel Speed Full Load
- Voltage: 80 Voltage
Features
- UL-E conformity
- AC Controller with MOSFET Design
- Planned Maintenance Indicator
- Easy access no-tools floorboard
- AC Hydraulic motor (no brushes or commutator)
- Double-Action Parking Brake
- Operator Presence Sensing System (OPSS)
- Retractable Seat Belt (Non-Clinching)
- AC drive motor (no brushes or commutator)
- System of Active Stability (SAS)
- Memory tilt steering column
- Regenerative Braking
- Electric Horn
- FPM Lift Speed: 96
- ORS Non-Suspension vinyl seat
- Heavy-duty non-slip floor mat
- Digital multifunction display
- Battery compartment hood assist
- Transistor controlled AC lift & drive Motors
- 3-way hydraulic control valve
- MPH Travel Speed: 11.8
- Can-bus controller wiring
- Overhead Guard
- Emissions: 0
- 80 Volt electrical System
