Toyota High-Capacity Electric Cushion Forklift
| Make | Toyota |
| Model | High-Capacity Electric Cushion Forklift |
| Type | 3 Wheel Electric |
How can we help?
Description
Overview

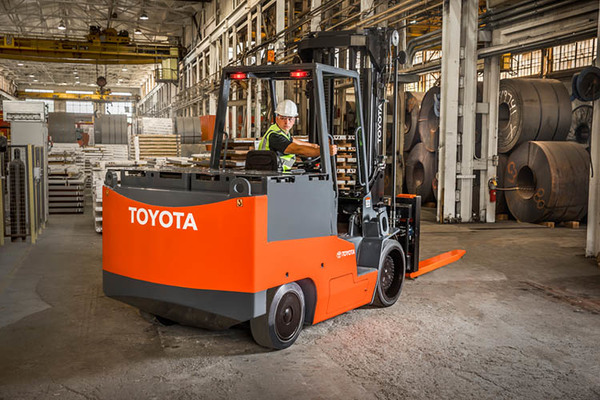

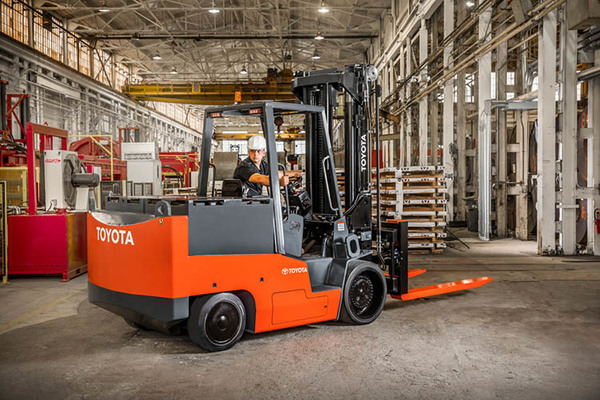

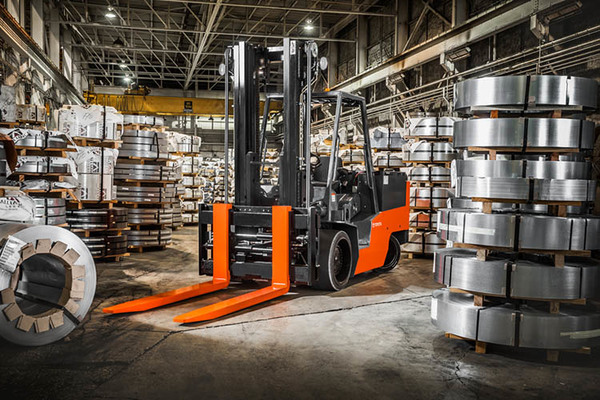

The Toyota High-Capacity Electric Cushion Forklift gives you the versatility to lift massive loads without the need of traditional IC engines. The versatile electric power and high visibility combined with a large 92-inch wheelbase means you’ll have the power you want and the maneuverability you need for your heaviest indoor duties.
Technological Advancement on Display

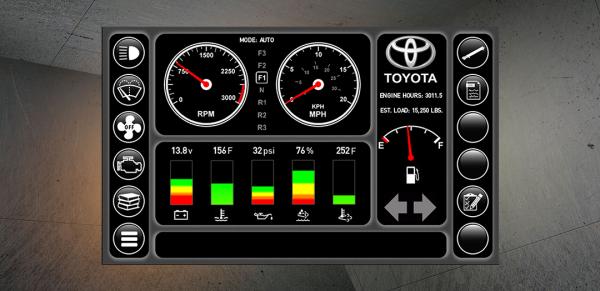

Every forklift in the Toyota THD line comes equipped with a MD4 7” Touchscreen Display. It combines the rugged power of the THD model lineup with the latest advancements in forklift technology to put ultimate customization, advanced diagnostics, and pertinent forklift information right at your fingertips.
Continued Performance

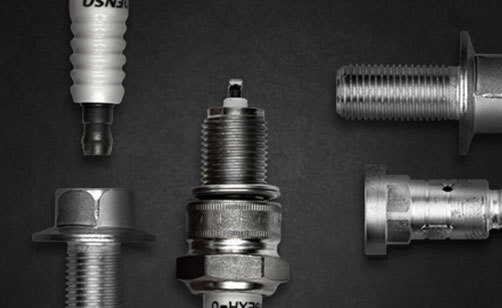

More forklift owners are seeking out equipment that will help them keep lifting for years in the future. Toyota offers some of the top-manufactured equipment on the market, and the High-Capacity Electric Cushion forklift is one of our most dependable heavy application models. To keep this and all of your other Toyota manufactured equipment running long into the future, consider a Planned Maintenance (PM) plan, where trained Toyota technicians will use only Toyota Genuine Parts to keep your rig lifting and moving.
Models
High-Capacity Electric Cushion Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| THDE1500-24 | 15,000 | 5.2 | 39.5 | 15 | 134 |
| THDE1800-24 | 18,000 | 5 | 39.5 | 22.5 | 139.2 |
| THDE2000-24 | 20,000 | 4.7 | 34.5 | 19.9 | 140 |
| THDE2200-24 | 22,000 | 4.6 | 34.5 | 18.7 | 140 |
| THDE3000-24 | 30,000 | 4.1 | 24 | 13.1 | 153.8 |
| THDE3000-30 | 30,000 | 4.1 | 24 | 12.5 | 156.35 |
| THDE3500-24 | 35,000 | 4 | 24 | 12 | 156.3 |
| THDE3500-30 | 35,000 | 3.9 | 16 | 10.8 | 173.5 |
| THDE4000-24 | 40,000 | 3.7 | 16 | 10.6 | 173.5 |
| THDE4000-30 | 40,000 | 3.7 | 16 | 9.9 | 173.5 |
Specifications
- Length to Forkface: 125.93 - 155.59
- Load Capacity: 15,000 - 40,000 lb. Load Capacity
- Model Types Available: 10 Model Types Available
- Overall Width: 62.99 - 72.44 in
- Overhead Guard Height: 93.57 - 102.56 in
- Travel Speed Full Load: 3.7 - 5.2 mph Travel Speed Full Load
Features
- 42.5 HP Drive Motor
- Volt Battery: 72 | 80
- Load sensing hydraulic system for optimal performance
- Safety Valves in Cylinder Bases
- Drum-Type Brake System
- EMISSIONS: 0
- Loaded Center of 24" or 30"
- Low-height, non-skid steps
- Hydraulic Multi-Gauge for convenient fluid checks
- Transistor Control Monitors
- Easily accessible drive motor
- Finger-tip hydraulic controls
- Left-hand shift lever
- Overhead Guard Improves Operator Protection and Promotes Visibility
- Brakes serviceable without removing entire drive axle
- Two-coat powder rust-inhibiting polyurethane paint
- 2 ¾ turn lock-to-lock steering wheel
- Cab Meets ANSI Requirements
- Easy seal replacement on chrome-plated rod cylinders
- Tilt steering column
- Emergency Stop
- Heavy Duty Planetary Drive Axle
- Readily accessible lubrication points
- HP Drive Motor: 42.5
- 72/80-Volt Configurations
- AC Drive and Pump Motors
