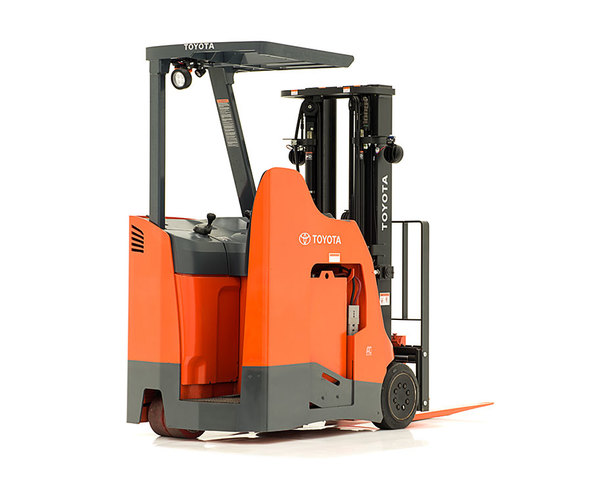

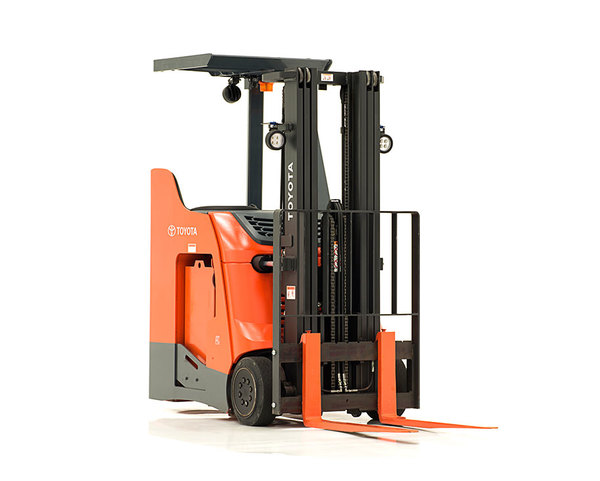

Toyota Stand-Up Rider Forklift
| Make | Toyota |
| Model | Stand-Up Rider Forklift |
| Type | 3 Wheel Electric |
How can we help?
Description
Overview
The unique dock-to-stock capability of the Toyota Stand Up Rider Forklift makes it top of its class and one of the most versatile forklifts in Toyota’s product line. With the ability to navigate narrow aisles, the Toyota Stand Up Rider Forklift is an asset to any material handling job.
THE LEADER IN VERSATILITY
The Toyota Stand-Up Rider forklift is built with the ultimate performance and comfort in mind, delivering improved ergonomics, reliability and durability while reducing service intervals. The Toyota Stand-Up Rider is a multi-purpose forklift that is ready to work when you are.
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Stand-Up Rider Forklift operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Stand-Up Rider Forklift can be an asset for your company for years to come.
Models
Stand-Up Rider Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8BNCU15-16.5 | 3,000 | 7.5 | 70 | 15 | 68.8 |
| 8BNCU15/18.5 | 3,000 | 7.5 | 70 | 15 | 70.8 |
| 8BNCU18/16.5 | 3,500 | 7.5 | 65 | 15 | 68.8 |
| 8BNCU18/18.5 | 3,500 | 7.5 | 65 | 15 | 70.8 |
| 8BNCU20-21.5 | 4,000 | 7.5 | 60 | 15 | 73.5 |
| 8BNCU20/18.5 | 4,000 | 7.5 | 60 | 15 | 70.8 |
Specifications
- Electrical System: 36 V Electrical System
- Length to Forkface: 68.5 - 70.5 in
- Load Capacity: 3,000 - 4,000 lb. Load Capacity
- Overall Width: 41.5 in
- Overhead Guard Height: 88 in
- Travel Speed Full Load: 7.5 mph Travel Speed Full Load
Features
- Low Step Height
- Spacious Operator Compartment
- Low-Effort Brake Pedal
- MPH Travel Speed: 7.5
- AC Transistor Control System with MOSFET
- Programmable Maintenance Indicator
- Integrated Clipboard, Amenity Tray & Cup Holder
- Emissions: 0
- Temperature Indicator
- Independent Lift, Steer & Auxiliary Motors
- AC Induction Drive and Lift Motors
- One-Piece Top Cover
- Hydrostatic Power Steering
- Flexible Side Stance Operator Compartment
- Self-Diagnostics
- Dual Electric Disk Brakes
- Up to 23′ Lift height
- 36 Volt Electrical System
- Navigation in 10′ aisles
- Regenerative Braking
- Battery Compartment Rollers
- Hydraulic Mast Cushioning
- Volt Motor: 36
- Maintenance Indicator
- High Visibility Mast & Overhead Guard
- Built-In Analyzer
- Up to 4,000 lb. Lifting Capacity
- Cornering Speed Control
- Cushion Ride Suspension
- Cushioned Padded Backrest & Armrest
