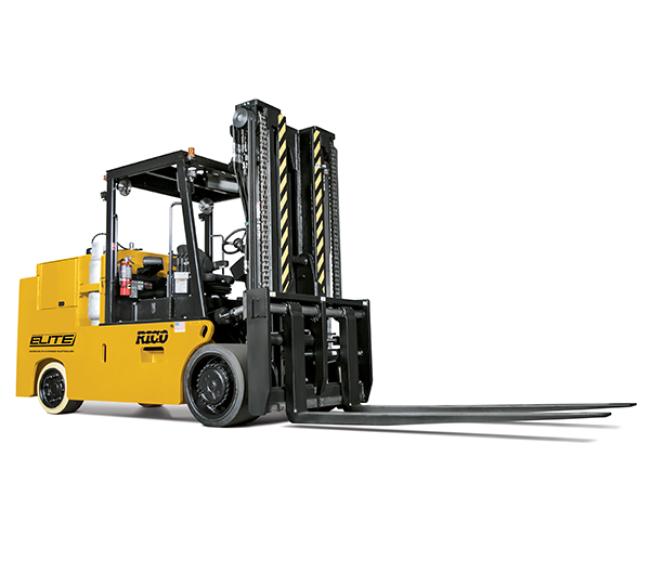

Yale Pegasus Elite Series - ICE

High Capacity

How can we help?

(555) 555-5555

Models Available: PG-200, PG-200C, PG-250, PG-250C, PG-300, PG-300C, PG-350, PG-400, PG-400C, PG-500

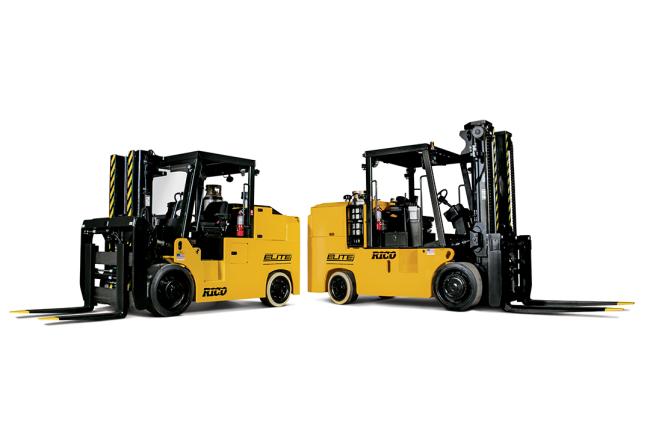

Designed for industrial applications, the Pegasus Elite high-capacity counterbalanced cushion tire series includes 10 different models, features lifting capacities from 20,000 to 50,000 pounds and offers compact versions. Multiple mast, carriage and fork combinations are available on the standard chassis to suit a wide range of applications and industries, including metals, automotive stamping and manufacturing.

Models Available: PG-200, PG-200C, PG-250, PG-250C, PG-300, PG-300C, PG-350, PG-400, PG-400C, PG-500

Features

Pegasus Elite series is designed for higher capacities in a standard foot print and design. Strategically built for environments that require forks for standard loads while maintaining unmatched performance throughout the day and its lifetime.
The spacious operator compartment boasts a clear view mast with a low profile chassis to allow driver to see the fork tips, enabling the highest visibility.
Designed with an all steel frame and stacked counterweights, a larger tank to replace cooling system, and standard knuckle steering for tighter turn radius.
Large steps, easy to reach rails, and exits from both sides of the truck allow for effortless ingress and egress.
The drive axle is designed to provide long service life and marginal downtime.
The mast incorporates a wide, upright spread to allow for easy and precise load spotting.

Specifications

Capacity:	20,000 - 50,000 lbs
Max Height:
Max Weight:	50000 lbs
Series Title:	Pegasus Elite Series - ICE
Type:	High Capacity Internal Combustion Forklift
Weight:	lbs

ModelTable

Model	Load Capacity (lbs.)	Load Centre	Engine	Maximum Travel Speed (mph)	Maximum Lift Speed (ft/min)
PG-200	20,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	64
PG-200C	20,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	64
PG-250	25,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	64
PG-250C	25,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	64
PG-300	30,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	50
PG-300C	30,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	50
PG-350	35,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	45
PG-400	40,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	34
PG-400C	40,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	34
PG-500	50,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	8	28

Features
Features
- Pegasus Elite series is designed for higher capacities in a standard foot print and design. Strategically built for environments that require forks for standard loads while maintaining unmatched performance throughout the day and its lifetime.
- The spacious operator compartment boasts a clear view mast with a low profile chassis to allow driver to see the fork tips, enabling the highest visibility.
- Designed with an all steel frame and stacked counterweights, a larger tank to replace cooling system, and standard knuckle steering for tighter turn radius.
- Large steps, easy to reach rails, and exits from both sides of the truck allow for effortless ingress and egress.
- The drive axle is designed to provide long service life and marginal downtime.
- The mast incorporates a wide, upright spread to allow for easy and precise load spotting.

Specifications

Capacity:	20,000 - 50,000 lbs
Max Height:
Max Weight:	50000 lbs
Series Title:	Pegasus Elite Series - ICE
Type:	High Capacity Internal Combustion Forklift
Weight:	lbs

Downloads & Documentation
Links
- Pegasus Elite Brochure

Details

ModelTable

Model	Load Capacity (lbs.)	Load Centre	Engine	Maximum Travel Speed (mph)	Maximum Lift Speed (ft/min)
PG-200	20,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	64
PG-200C	20,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	64
PG-250	25,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	64
PG-250C	25,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	64
PG-300	30,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	50
PG-300C	30,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	50
PG-350	35,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	45
PG-400	40,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	34
PG-400C	40,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	9	34
PG-500	50,000	24	KEM 5.7L LPG, Cummins QSF 3.8L Tier 4F Diesel	8	28
