Toyota High-Capacity Adjustable Wheelbase
| Make | Toyota |
| Model | High-Capacity Adjustable Wheelbase |
| Type | Internal Combustion |
How can we help?
Description
Overview

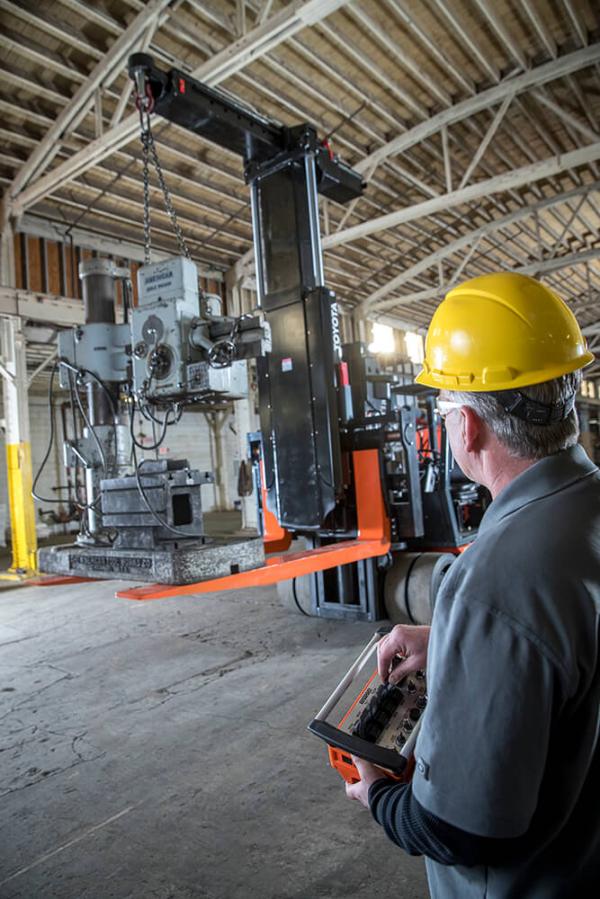

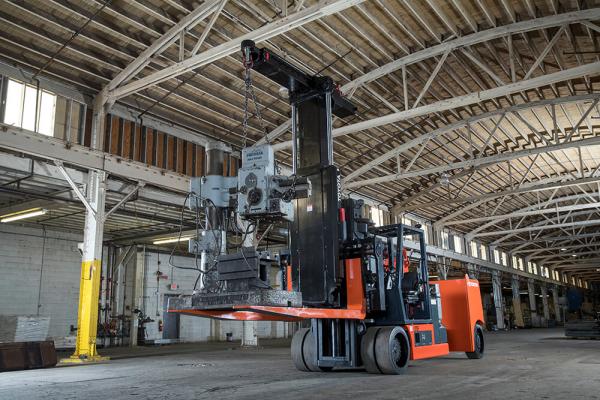

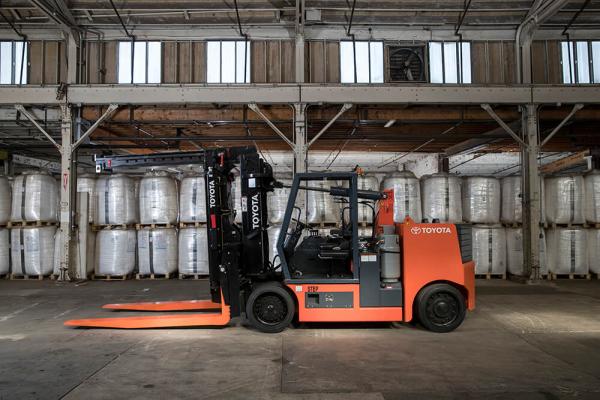

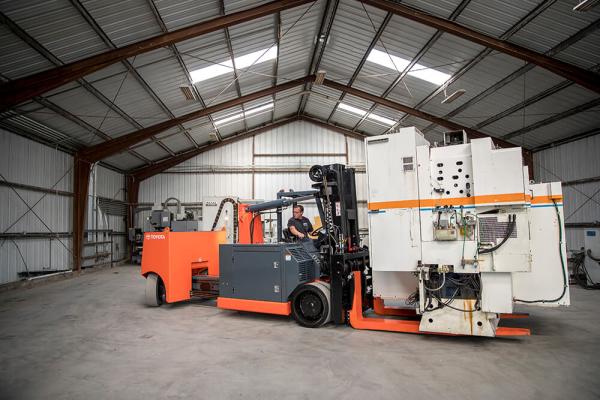

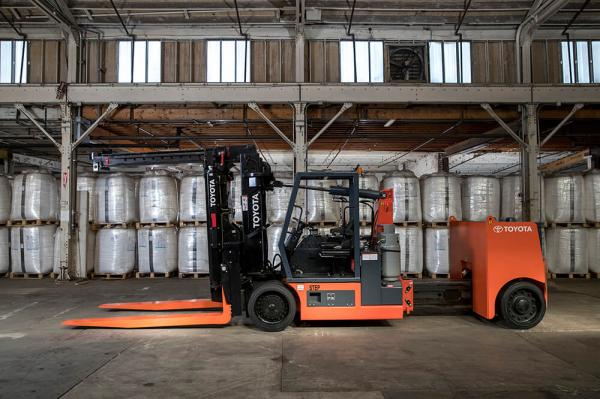

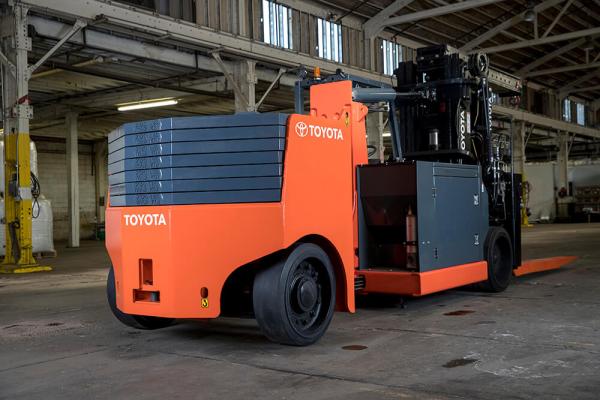

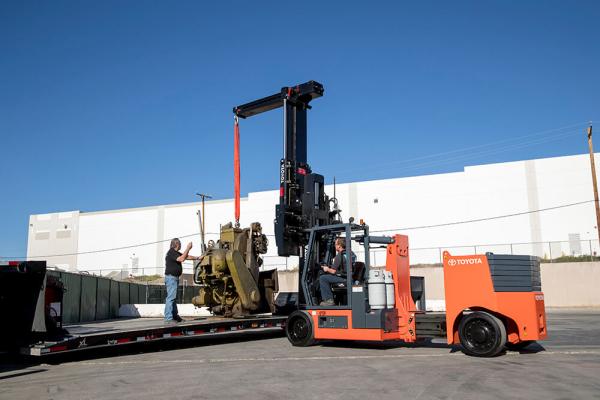

The Toyota High-Capacity Forklift with Adjustable Wheelbase is a master of flexibility. This sit down counterbalanced forklift allows operators to make adjustments to varying load weights with an extendable counterweight that includes removable slabs. Need to move a big, awkward item? The multi-stage telescopic boom is able to safely and efficiently move large equipment such as industrial machinery or massive engines.
Technological Advancement on Display

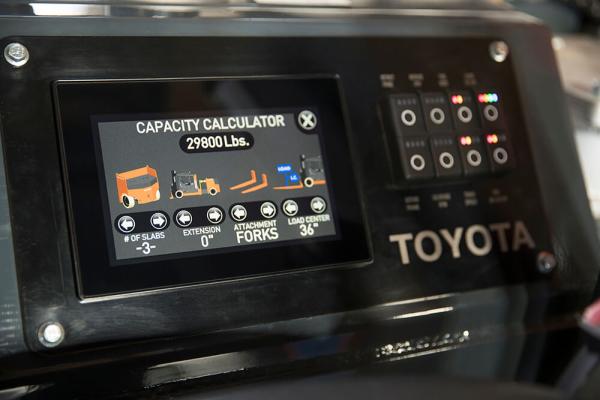

Every forklift in the Toyota THD line comes equipped with a MD4 7” Touchscreen Display. It combines the rugged power of the THD model lineup with the latest advancements in forklift technology to put ultimate customization, advanced diagnostics, and pertinent forklift information right at your fingertips.
Continued Performance with Toyota 360 Support

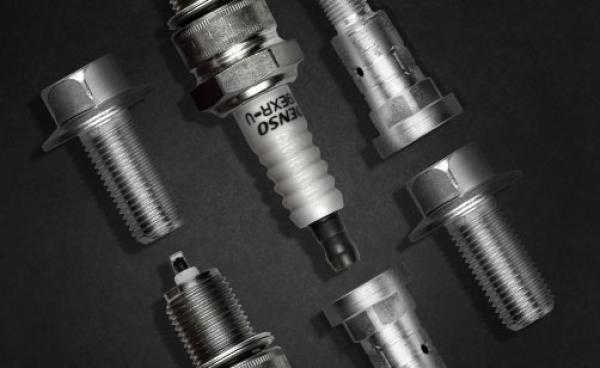

More forklift owners are seeking equipment that will help them keep lifting into the future. Toyota offers some of the top-manufactured equipment on the market, and the High-Capacity Adjustable Wheelbase forklift is one of our most dependable heavy-application models. To keep this and all of your other Toyota manufactured equipment running long into the future, consider adding Toyota 360 Support Plus, which includes a year of Planned Maintenance (PMs). Toyota 360 Support is our promise that we’ll be your partner for the full lifetime of your forklift and beyond. Toyota Technicians will use Toyota Genuine Parts to keep your rig lifting and moving.
Models
High-Capacity Adjustable Wheelbase
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| THDA15/25 | 15,000 - 25,000 | N/A | N/A | N/A | 141 - 172 |
| THDA25/35 | 25,000 - 35,000 | N/A | N/A | N/A | 140 - 173 |
| THDA40/60 | 40,000 - 60,000 | N/A | N/A | N/A | 168.9 - 213.9 |
| THDA60/80 | 60,000 - 80,000 | N/A | N/A | N/A | 207.63 - 260.26 |
Specifications
- Available Models: 4 Available Models
- HP: 81 – 110 HP
- Length to Forkface: 127 - 241.13
- Load Capacity: 15,000 – 80,000 lb. Load Capacity
- Overall Width: 60 - 84
- Overhead Guard Height: 82.13 - 98.06
Features
- Multi-Function Display: 7”

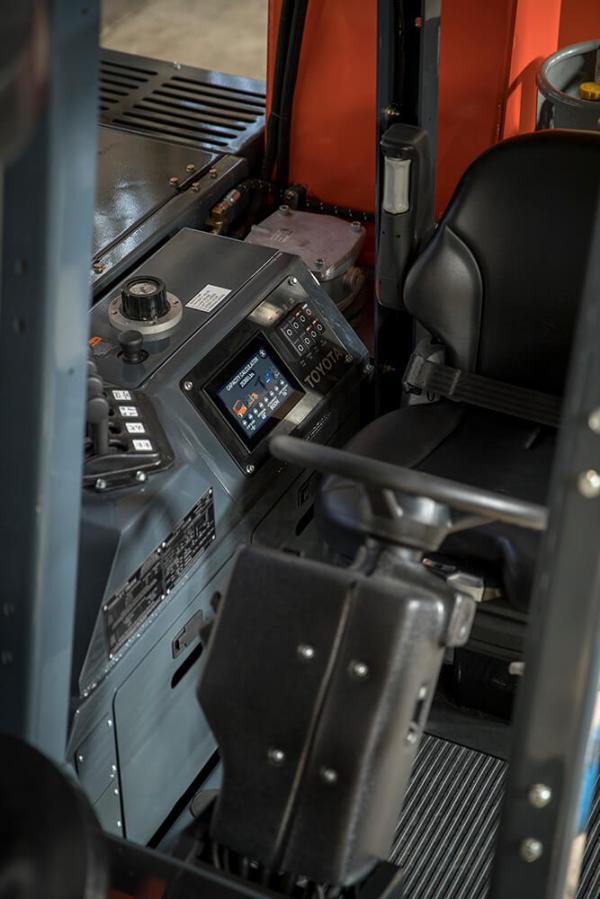

- Rubber-mounted, Isolated Cab for Reduced Vibration
- Easy Access Oil Filter
- Quick-Change System for Forks and Boom Attachment
- Adjustable Semi-Suspension Seat
- Hydrostatic Transmission: 2-Speed
- Operator Restraint System Seat
- High Gear and Low Gear Settings
- Hydraulically Extendable Counterweight / Counterbalance
- Externally Mounted Charge Pump
- Sealed Weather Pack Connectors
- Soft-Touch Hydraulic Levers
- Orange Forks

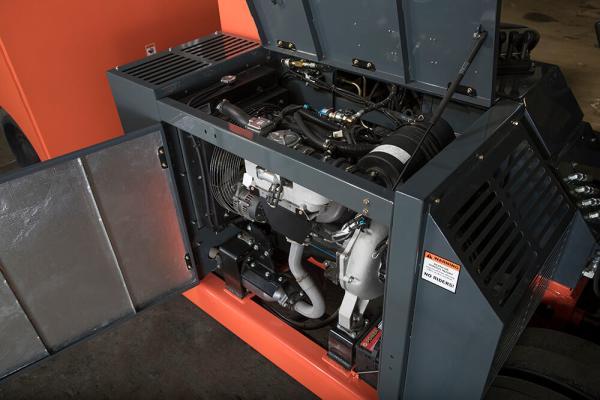

- Engine: 3.0L or 4.6L
- Hydraulic Release Parking Brake
- Optional Side-Shifting Fork Positioner
- Built-In Engine Protection System
- 2-Speed Hydrostatic Transmission
- Bolt-On Overhead Guard
- Optional Remote Control
- Electric Radiator Fan with Automatic Reversing
- Wide Visibility Mast
- 7" Touchscreen Multi-Function Display
- Large, Dual Operator Assist Grips
- Operator Presence Sensing System (OPSS)
- Full Hydraulic Power Steering
- Engine Fault Code Diagnostics
