Toyota High-Capacity Cushion Forklift
| Make | Toyota |
| Model | High-Capacity Cushion Forklift |
| Type | Internal Combustion |
How can we help?
Description
Overview
The High-Capacity IC Cushion Forklift is a homerun when it comes to versatility in the warehouse or manufacturing facility. Need to lift large pallets full of heavy components? The High-Capacity Cushion has you covered with its ability to lift up to 22,000 lbs. you’ll have those pallets of metal moving in no time. Have a paper plant with larger than normal rolls? The High-Capacity Cushion can come with a roll clamp to make those operations a cinch.
Technological Advancement on Display

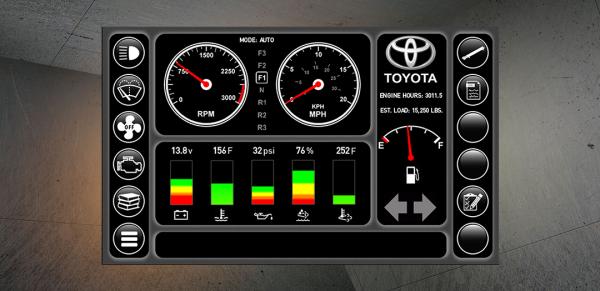

Every forklift in the Toyota THD line comes equipped with a MD4 7” Touchscreen Display. It combines the rugged power of the THD model lineup with the latest advancements in forklift technology to put ultimate customization, advanced diagnostics, and pertinent forklift information right at your fingertips.
Continued Performance
More forklift owners are seeking out equipment that will help them keep lifting for years in the future. Toyota offers some of the top-manufactured equipment on the market, and the High-Capacity Cushion forklift is one of our most dependable big application models. To keep this and all of your other Toyota manufactured equipment running long into the future, consider a Planned Maintenance (PM) plan, where trained Toyota technicians will use only Toyota Genuine Parts to keep your rig lifting and moving.
Models
High-Capacity Cushion Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| THDC1800-24 | 18,000 | 14.3 | 50 | 30.5 | 140.6 |
| THDC1800-36 | 18,000 | 14.3 | 46 | 27.4 | 144.3 |
| THDC2200-24 | 22,000 | 14.3 | 46 | 25.2 | 144.3 |
| THDC2200B-24 | 22,000 | 14.3 | 46 | 24.8 | 133.4 |
Specifications
- Length to Forkface: 123.8 - 135.7 in
- Load Capacity: 18,000 - 22,000 lb. Load Capacity
- Model Types Available: 4 Model Types Available
- Overall Width: 60.7 in
- Overhead Guard height: 88.9 in
- Travel Speed Full Load: 14.3 mph Travel Speed Full Load
Features
- NEUTRAL SAFETY SWITCH
- 2-Function Hydraulic Control Valve
- OPERATOR PRESENCE SENSING SYSTEM (OPSS)
- Mast-Mounted LED Headlights
- Heavy-Duty Planetary Drive Axle
- MPH Travel Speed: 14.3
- Left Hand Shift Lever
- Easy-Access Filters and Service Panels
- Low Chassis Side Plate for Drive Train Access
- Sealed Enclosure with Wires and Components
- OPERATOR RESTRAINT SYSTEM
- ASBESTOS FREE COMPONENTS
- Drum-Type Braking System
- Hydraulic Multi-Gauge
- Independent Brake and Inching Pedals
- L V6 Engine: 4.3
- Tilt Steering Column
- Finger-Tip Hydraulic Controls
- ENGINE SHUTDOWN SYSTEM
- RIGIDLY CONSTRUCTED FRAME
- Low-Height, Non-Skid Steps
- 48” Hook-Type Forks
- Engine Management System
- 2 ¾ Turn Lock-to-Lock Steering Wheel
- Speed Dana Power Transmission: 3
- LOAD-SENSING, "ON-DEMAND" HYDRUALICS
