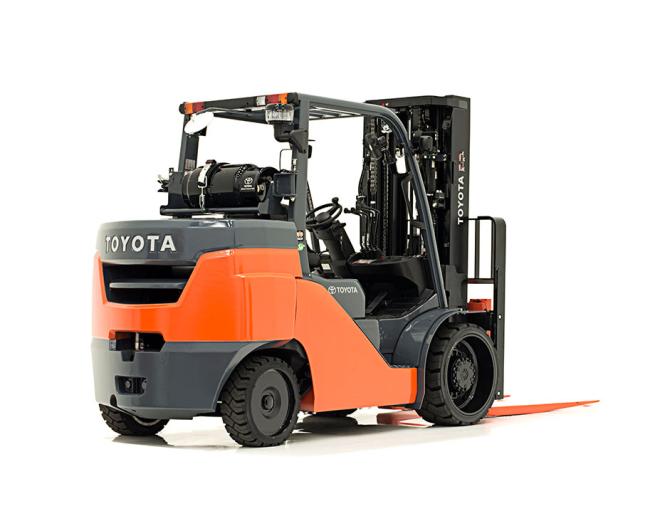

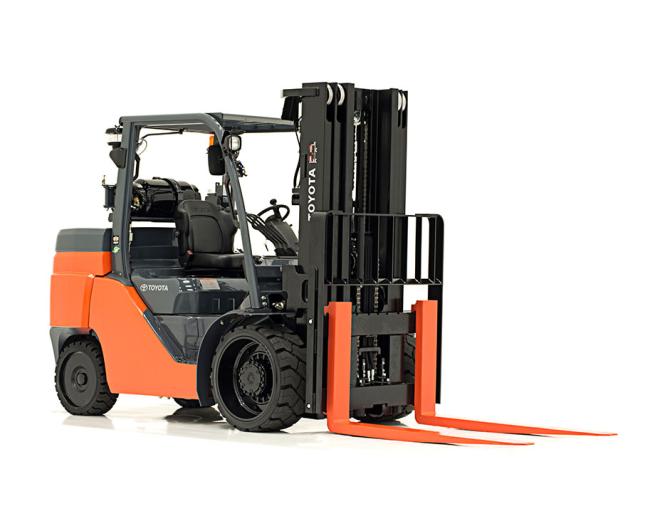

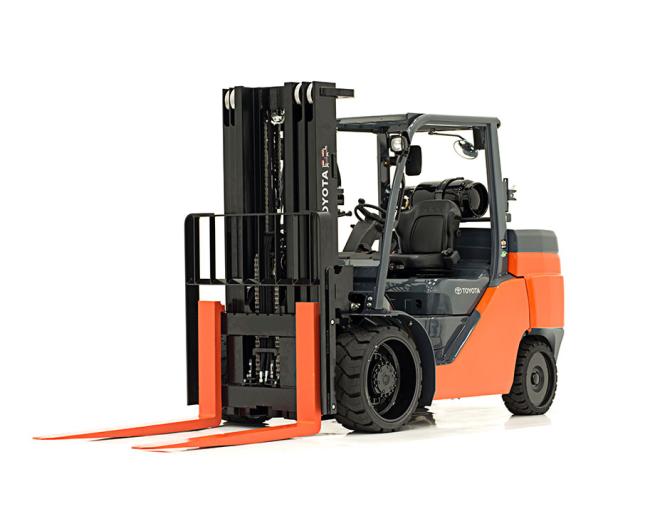

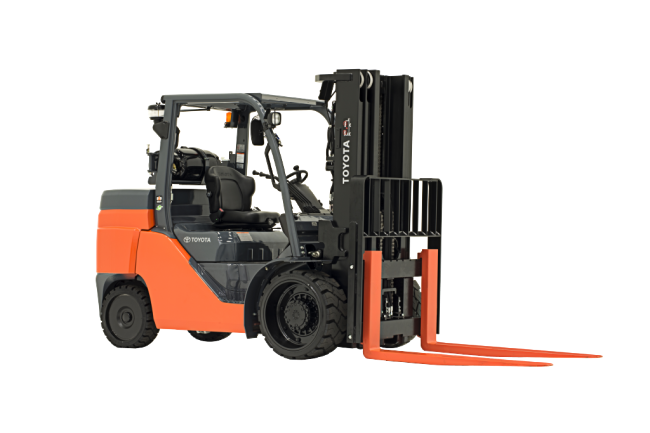

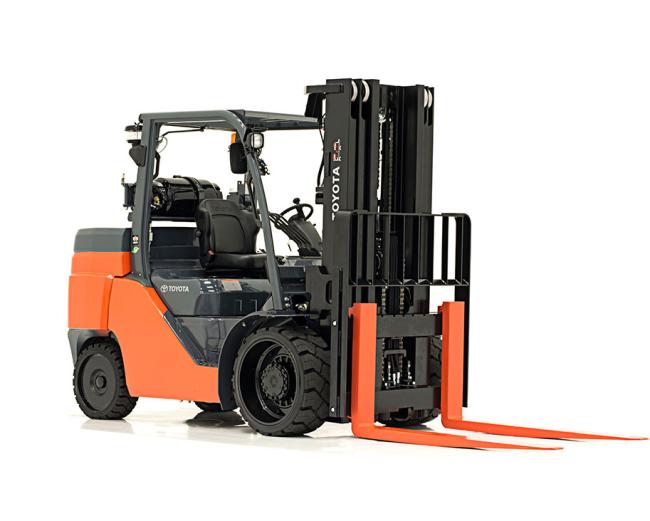

Toyota Large IC Cushion Forklift
Internal Combustion
How can we help?
(555) 555-5555
Features
-
LED headlights
-
Low, wide entry steps
-
Controller Area Network (CAN-bus) communication
-
Exclusive QR code diagnostics
-
LCD multi-function display
-

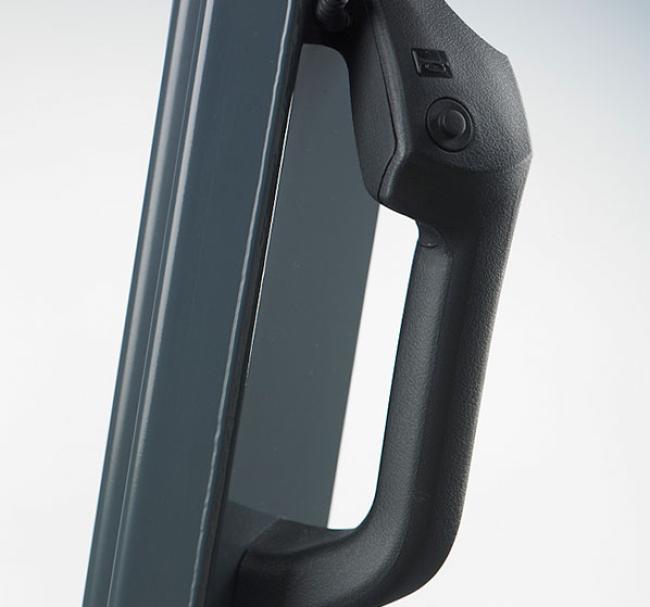

12″ long dual operator assist grips
-
NEUTRAL START SAFETY SWITCH
-
Dash mounted instrument display
-
11.8″ diameter two-spoke steering wheel
-
DUAL OPERATOR ASSIST GRIPS
-
ELECTRIC HORN
-
Horsepower: 84
-
SYSTEM OF ACTIVE STABILITY
-
Up to 15,500 lbs. lift capacity
-
Navigation in 13-14′ aisle widths
-
SYSTEM OF ACTIVE STABILITY (SAS)
-
Engine protection system
-
Adjustable headlights with guards
-
LOAD BACKREST
-
Fork Leveling: Automatic
-
OPERATOR PRESENCE SENSING SYSTEM (OPSS)
-
Air Cleaner discharge valve
-
Integrated monitoring system
-
OPERATOR RESTRAINT SEAT
-
Easy access no-tools floorboard
-

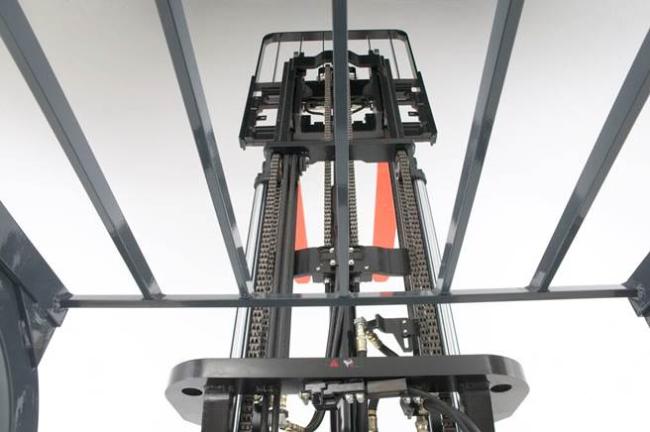

BOLT-ON OVERHEAD GUARD
-
Dash integrated amenity tray and oversized cup holder
-
Engine hood assist damper with lock device
-
Easy lift engine hood with wide 75 degree opening
-
Travel Speed: 13 mph
-
Nearly 20′ lift height
-
Fully-Sealed Air Intake
-
Moisture resistant electric connectors
-
Easy access to common service items such as filters & dipsticks
-
Load sensing power steering
-
KEY LOWERING INTERLOCK
-
4-Way adjustable vinyl full-suspension seat
Specifications
Fuel Type: |
Gas / LPG Fuel Type |
Length to forkface: |
103 - 118.1 in |
Load Capacity: |
8,000 - 15,500 lb. Load Capacity |
Overall Width: |
50 - 57.1 in |
Overhead Guard Height: |
83.5 - 86 in |
Travel Speed Full Load: |
11.8 - 13 mph Travel Speed Full Load |
Links
- Download Spec Sheet
- Toyota Material Handling | Rentals: What to Expect When Renting
- Toyota Material Handling | Rentals: Rent vs. Buy
- Toyota Material Handling | Warehouse Space Planning 101
- Toyota Material Handling | Rentals: Rent Before Buying or Leasing
- Toyota Material Handling | 360º Products: Large IC Cushion Forklift
- Toyota Material Handling | Toyota Forklift Ergonomics
- Toyota Material Handling | Rentals: 5 Things to Know Before Renting
Large IC Cushion Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8FGC35U | 8,000 | 11.8 | 100 | 47 | 107.5 |
| 8FGC45U | 10,000 | 11.8 | 98 | 37 | 112 |
| 8FGC55U | 12,000 | 13 | 91 | 34 | 118 |
| 8FGC60U | 13,500 | 13 | 81 | 31 | 123 |
| 8FGC70U | 15,500 | 13 | 81 | 28 | 123 |
