Toyota Mid IC Pneumatic Forklift
| Make | Toyota |
| Model | Mid IC Pneumatic Forklift |
| Type | Internal Combustion |
How can we help?
Description
Overview
The Toyota Mid IC Pneumatic Forklift, with a capacity of 8,000 – 11,000 lbs., is a premier material handling solution for most mid-capacity outdoor applications. Powerful, durable and engineered with ergonomics in mind, the Mid IC Pneumatic Forklift is ideal for long days in the lumber yard, on construction sites and most other outdoor applications.

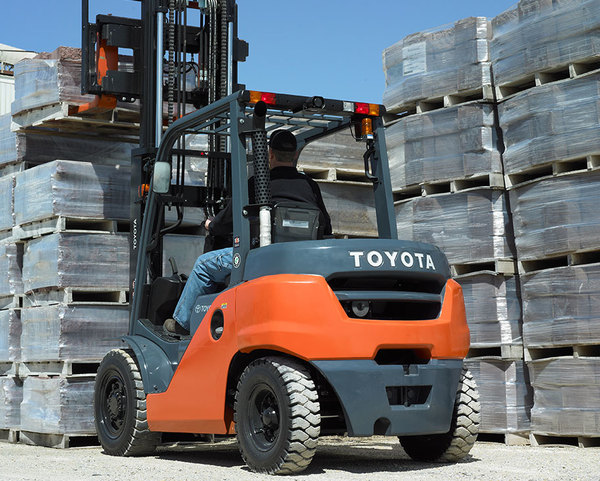

Outdoor Application Case Study
When moving heavy loads of building products all day long, it is crucial to have forklifts with the muscle to do the job right. That is why McCoy’s Building Supply chose Toyota forklifts to move materials at over 80 stores, located in five southern states. Today, McCoy’s Building Supply uses over 250 Toyota forklifts, which makes up 95% of their total fleet.
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Mid IC Pneumatic Forklift operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Mid IC Pneumatic Forklift can be an asset for your company for years to come.
Models
Mid IC Pneumatic Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8FD35U | 8,000 | 13.1 | 103 | 43 | 122.5 |
| 8FG35U | 8,000 | 13.7 | 103 | 42 | 122.5 |
| 8FD40U | 9,000 | 13.1 | 103 | 39 | 124.5 |
| 8FG40U | 9,000 | 13.7 | 103 | 38 | 124.5 |
| 8FD45U | 10,000 | 13.1 | 94 | 35 | 129.5 |
| 8FG45U | 10,000 | 13.7 | 94 | 34 | 129.5 |
| 8FD50U | 11,000 | 13.1 | 94 | 31 | 132.5 |
| 8FG50U | 11,000 | 13.7 | 94 | 31 | 132.5 |
Specifications
- Fuel Type: Gas / LPG / Diesel Fuel Type
- Length to forkface: 115.2 - 124.8 in
- Load Capacity: 8,000 - 11,000 lb. Load Capacity
- Overall Width: 53.1 - 57.1 in
- Overhead Guard Height: 87 - 90.6 in
- Travel Speed Full Load: 13.1 - 13.7 mph Travel Speed Full Load
Features
- Neutral Start Safety Switch
- Easy access no-tools floorboard
- Easy lift engine hood with wide 75° opening
- Engine hood assist damper with lock device
- Operator Presence Sensing System (OPSS)
- Bolt-On Overhead Guard
- LED headlights
- Controller Area Network (CAN-bus) communication
- Engine protection system
- Asbestos Free Components
- Key Lowering Interlock
- 12″ dual operator assist grips
- Load-sensing power steering
- Travel Speed: 13.7 MPH
- 11.8″ diameter two-spoke steering wheel
- Automatic Transmission: 2 Speed
- Integrated monitoring system
- Exclusive QR code diagnostics
- Dash-mounted instrument display
- System of Active Stability (SAS)
- Air cleaner discharge valve
- Cowl-mount hydraulic control levers with rubber boot covers
- 4-Way adjustable vinyl full-suspension seat
- Toyota Built Engines: 1FS / 1KD
- Toyota designed and built engines
- LCD multi-function display
- Low wide-entry steps
