Toyota Center-Controlled Rider Pallet Jack
| Make | Toyota |
| Model | Center-Controlled Rider Pallet Jack |
| Type | Pallet Stacker |
How can we help?
Description
Overview

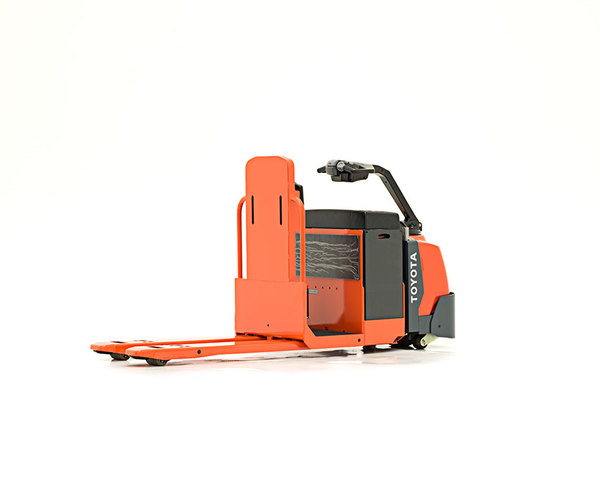

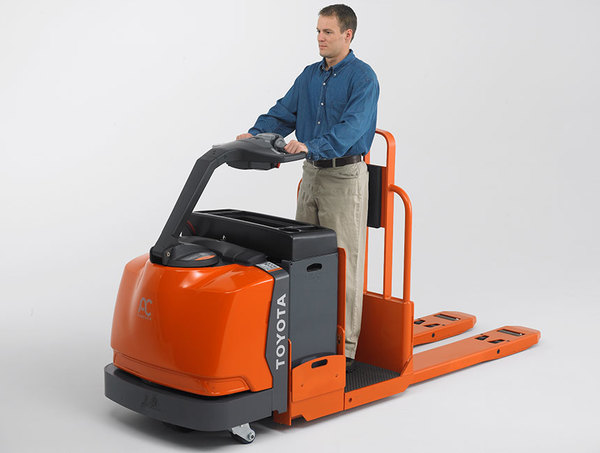

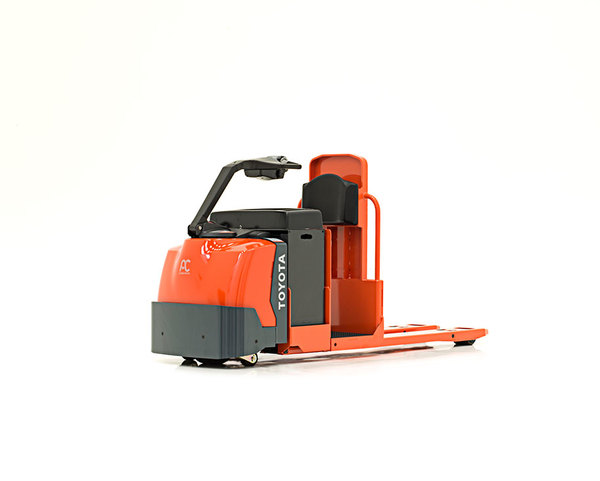

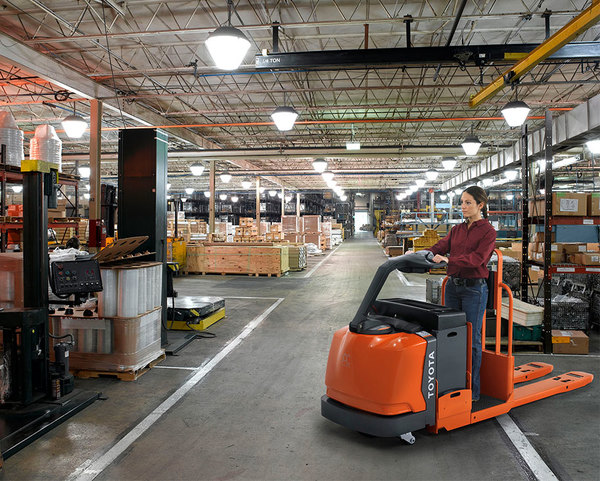

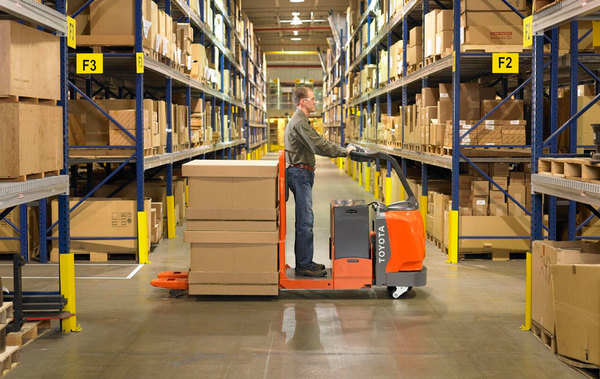

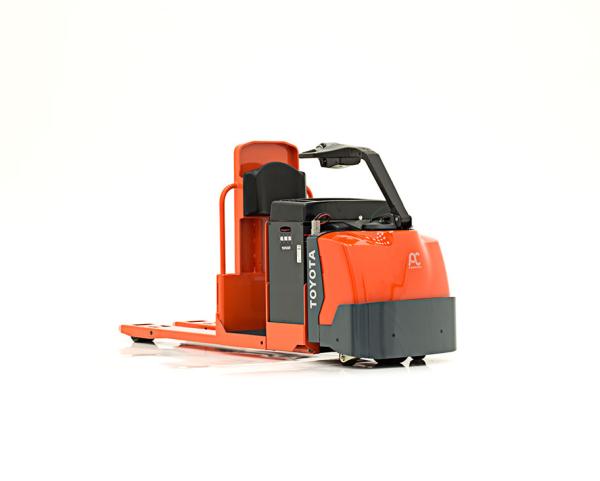

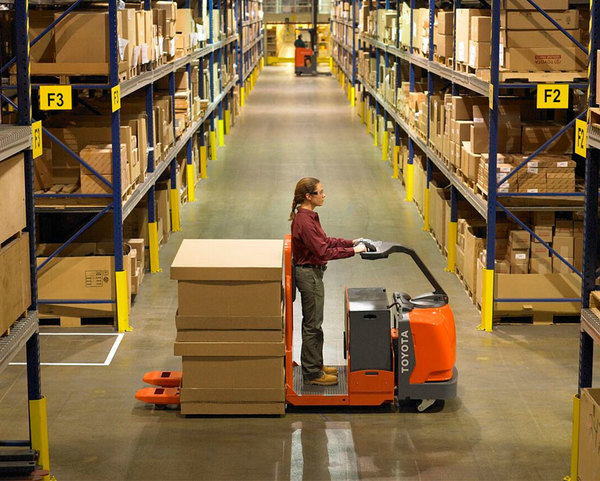

The Toyota Center-Controlled Rider Pallet Jack is easy to maneuver and quick to respond to commands. The motorized pallet jack, ideal for longer runs, provides a comfortable operator compartment. Doubling as a ground-level order picker, the Center-Controlled Rider Pallet Jack is an asset to any warehouse or distribution center.
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Center-Controlled Rider Pallet Jack operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Center-Controlled Rider Pallet Jack can be an asset for your company for years to come.
Models
Center-Controlled Rider Pallet Jack
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8HBC30 | 6,000 | 6.2 | N/A | 10 | 98.8 |
| 8HBC40 | 8,000 | 6.2 | N/A | 10 | 142 |
Specifications
- Height (Extended Handle): 56 in
- Load Capacity: 6,000 - 8,000 lb. Load Capacity
- Overall Length: 90.3 - 155.7 in
- Overall Width: 32.5 in
- Travel Speed Full Load: 6.2 mph Travel Speed Full Load
- Voltage: 24 Voltage
Features
- High-Speed, Interlock Button
- MPH Travel Speed: 6.2
- Easy Service Access
- Regenerative Braking
- Box Rail Fork Construction
- Low-Effort Control Handle
- Wrap-Around Hand Guard
- 96″ Forks Option For Order Picking
- Heavy-Duty Spring-Loaded Stabilizing Casters
- 24-Volt Electrical System
- Teflon® Coated PolyLube™ Lift Linkage Bushings (Maintenance Free)
- One-Piece, Lightweight Service Access Cover

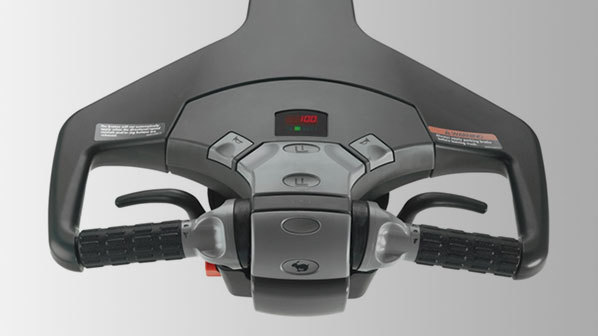

- Multifunction Control Handle with Ergonomically Angled Hand Grips and Wrap-Around Hand Guard
- Intuitively Positioned Lift/Lower and Horn Buttons (Horn Button on 8TB50 Only)
- Self-Adjusting Electric Disc Brake
- AC Drive Motor (No Brushes or Commutator)
- Control Handle With Duel Brake Levers
- Volt Motor: 24
- Electronic Horn
- Bubble-Cushioned Operator Floor Mat, Padded Backrest and Knee Pad
- Dual Thumb Wheels with Twist Grips for Directional Control and Travel Speed
- Heavy-Duty Bushings and Pins
- Up to 8,000 lbs. Carrying Capacity
- Welded Construction with Reinforced Heavy-Duty Bumper
- On-Board Self-Diagnostics
- Emmisions: 0
- Programmable Performance
- AC Drive System
- Controller Area Network (CAN-bus) Communications
- Comfortable Operator Compartment For Long Days
- Error Indicator with Self-Diagnostics
