Toyota Counter-Balanced Stacker
| Make | Toyota |
| Model | Counter-Balanced Stacker |
| Type | Pallet Stacker |
How can we help?
Description
Overview

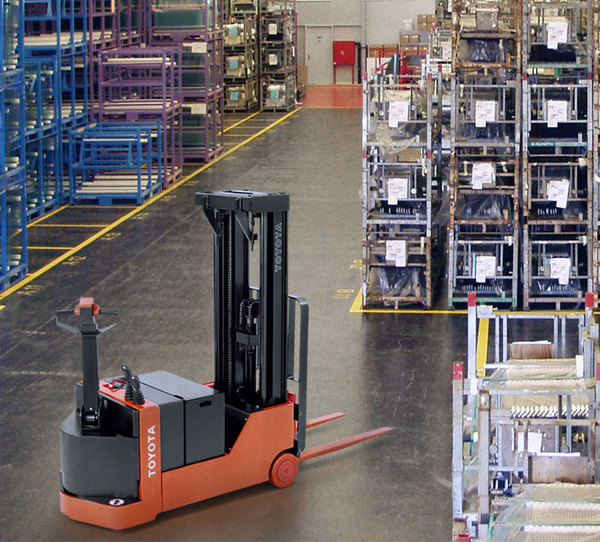

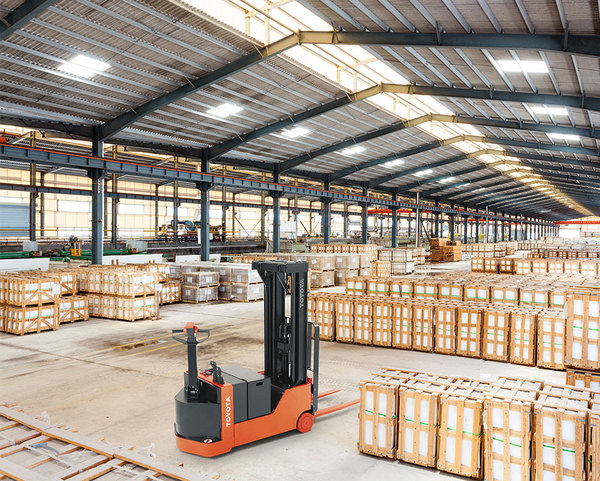

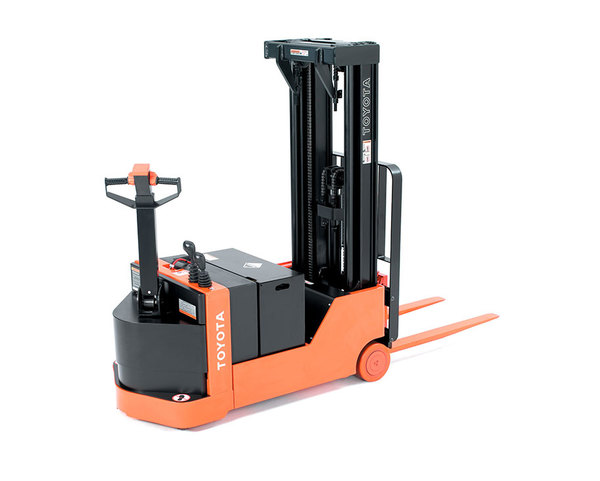

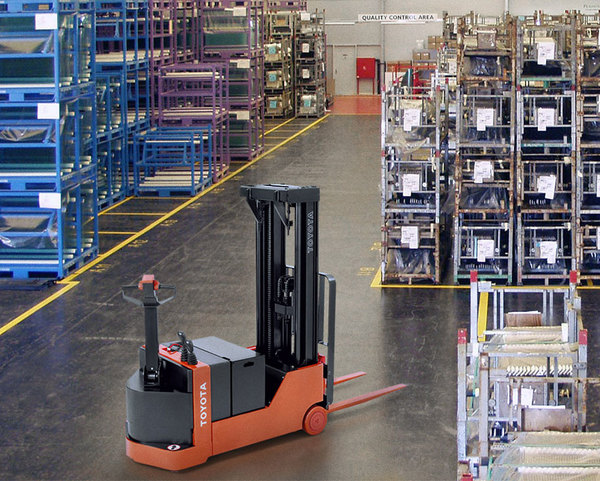

Toyota’s Counterbalanced Electric Pallet Stacker is a nimble, highly-versatile lift that complements nearly any primarily indoor application. Balanced similar to a traditional forklift and without baselegs, the Counterbalanced Electric Stacker can fit into tight spaces. Extremely durable and budget friendly, the Toyota Counterbalanced Stacker can help increase both your uptime and your bottom line.
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Counter-Balanced Stacker operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Counter-Balanced Stacker can be an asset for your company for years to come.
Models
Counter-Balanced Stacker
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 6BWC10 | 2,000 | 2.9 | 37 | 6 | 111 |
| 6BWC15 | 3,000 | 3 | 32 | 6 | 116 |
| 6BWC20 | 4,000 | 2.8 | 27 | 6 | 122 |
Specifications
- Length to Forkface: 64.8 - 76.6 in
- Load Capacity: 2,000 - 4,000 lb. Load Capacity
- Mast Lowered Height: 83 in
- Overall Width: 34.1 in
- Travel Speed Full Load: 2.8 - 3 mph Travel Speed Full Load
- Voltage: 24 Voltage
Features
- Automatic Resetting Circuit Breaker
- On/Off Key Switch
- Electric Horn
- Fully-Programmable Drive System
- FPM Lift Speed: 37
- Mechanical Drum Brake
- Multifunction Control Handle
- Easy-Access Service Cover
- Direction Reverse Switch In Control Handle
- Power On Self Test
- MOSFET Programmable Controller
- Emissions: 0
- UL-Approved Model Type E
- Steel Access Door
- High-Visibility Mast
- Emergency Power Disconnect Switch
- Directional Thumb Control
- Pressure-Overload Relief Valve and Lowering Control Fuses
- SB-175 Red Connector
- 30-Inch Wide ITA Class II Hook-Type Carriage
- Up to 15′ Lift Height
- 24 Volt Electrical System
- Up to 4,000 lb. Lifting Capacity
- High Visibility Mast
- Volt Motor: 24
- Reverse Polarity Protection Contactor
- 9-10′ Aisle Widths
