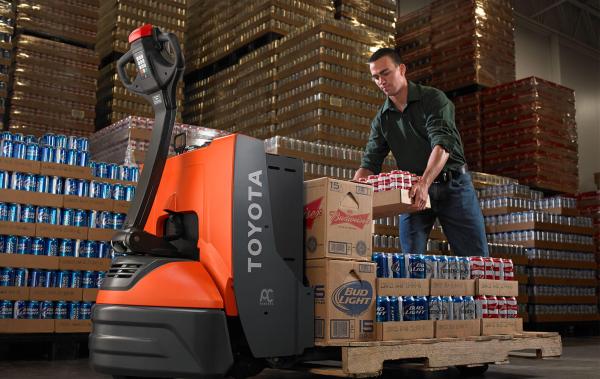

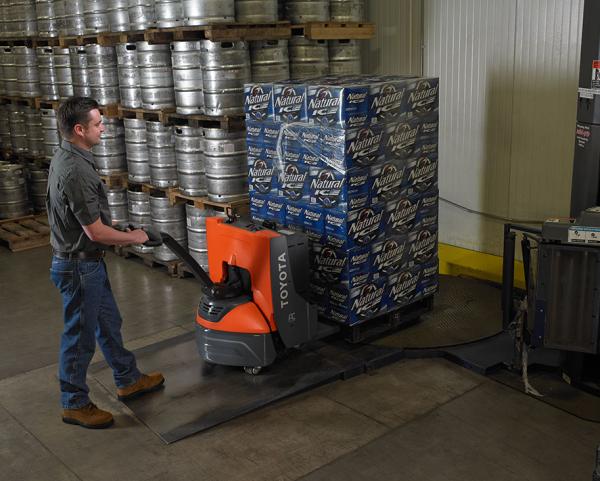

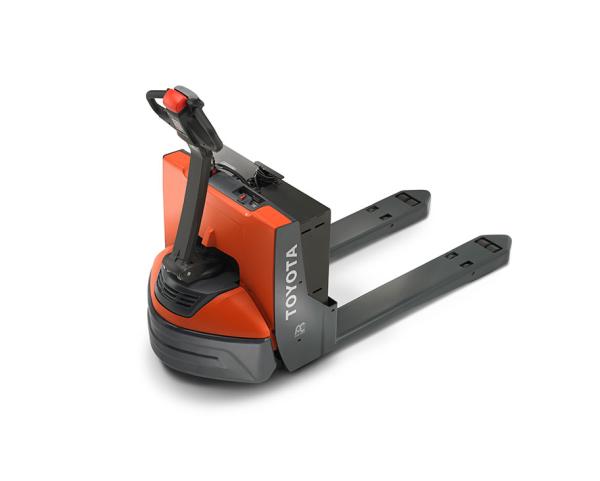

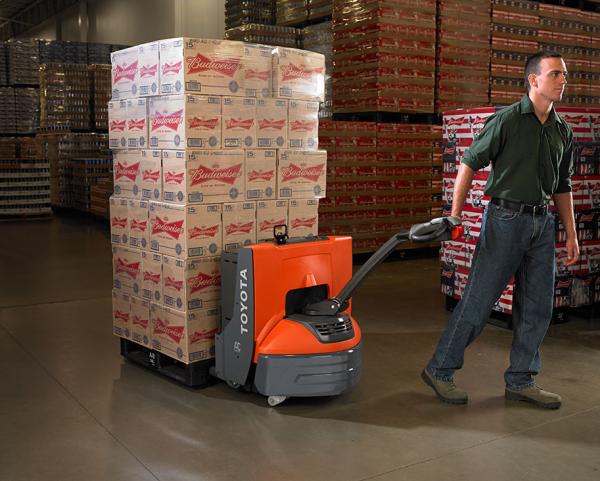

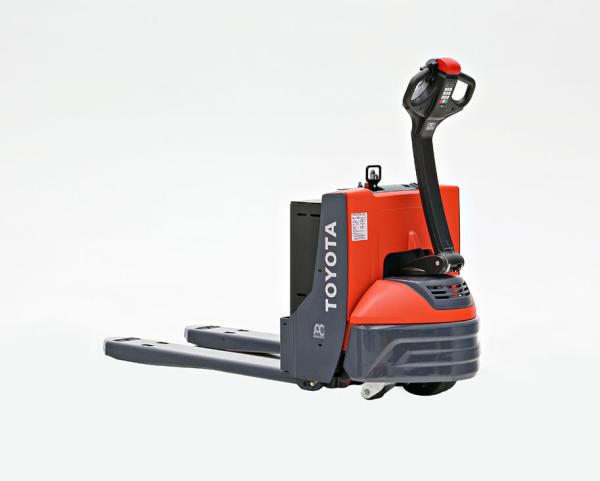

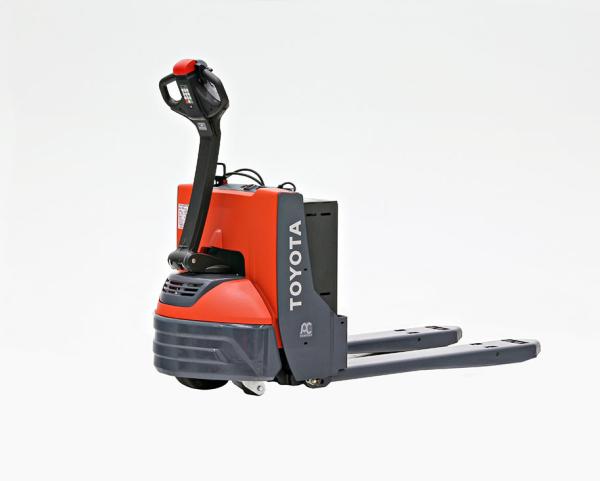

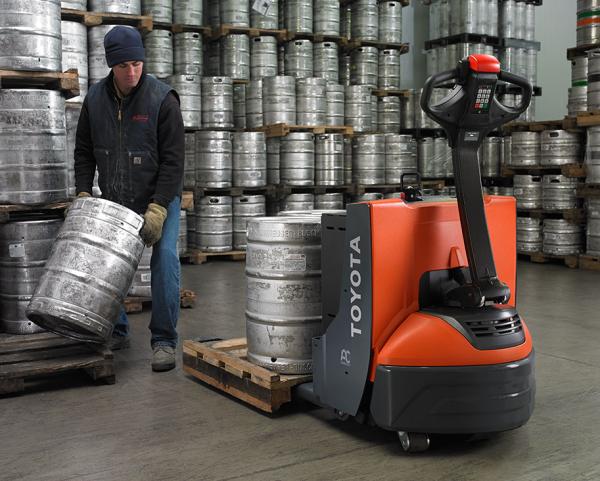

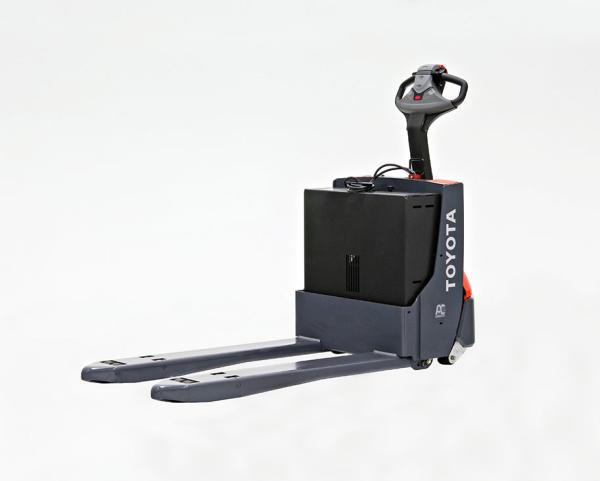

Toyota Electric Walkie Pallet Jack
| Make | Toyota |
| Model | Electric Walkie Pallet Jack |
| Type | Pallet Stacker |
How can we help?
Description
Overview

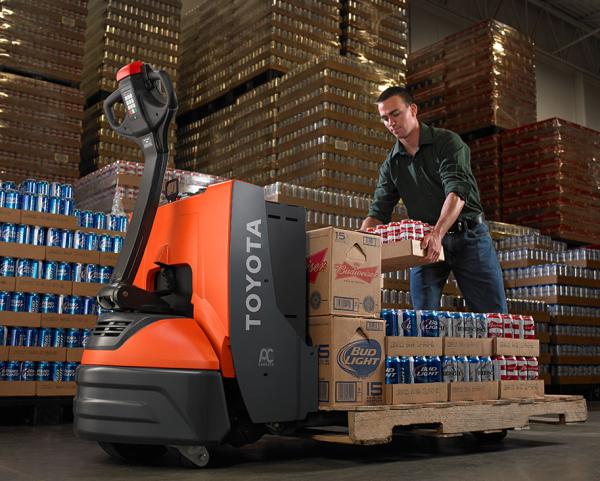

The Toyota Electric Walkie Pallet Jack makes pulling product through the warehouse efficient and convenient. The first of its kind to offer a factory option for an integrated fork scale, the Electric Walkie Pallet Jack can calculate weight even as the load is lifted and save space by eliminating the need for a separate scale. Ideal for mid-distance runs as well as loading and unloading trailers, it’s a handy, multi-use solution for nearly any application.
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Electric Walkie Pallet Jack operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Electric Walkie Pallet Jack can be an asset for your company for years to come.
Models
Electric Walkie Pallet Jack
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8HBW23 | 4500 | 3.6 | N/A | 10 | 85.3 |
Specifications
- Height (Extended Handle): 47.2 in
- Load Capacity: 4,500 lb. Load Capacity
- Overall Length: 53.4 - 81.4 in
- Overall Width: 26.6 in
- Travel Speed Full Load: 3.6 mph Travel Speed Full Load
- Voltage: 24 Voltage
Features
- AC Drive Motor
- Long run times
- Click to Creep Function
- Programmable Neutral Speed Reduction
- Box Rail Fork Construction
- Up to 4,500 lbs. Carrying Capacity
- Controller Area Network (CAN-Bus) Communication
- Electronic Brake Release
- IP65 Electrical System
- Battery Compartment: 26.5″ x 7.8″ x Open Height
- Volt Motor: 24
- High-Strength Service Cover with Pen & Pencil Storage Tray
- Anti-Roll Back System
- Highly maneuverable
- Integrated Fork Scale
- Tool-free cover removal
- Emissions: 0
- Electric Horn
- Directional Thumb Wheels
- 24 Volt Electrical System
- Fingertip Control of all Functions
- Programmable Service Indicator
- Spring-Loaded Control Handle
- Electric Disc Brake
- Optional Integrated Fork Scale
- Multifunction Control Handle with Ergonomically Angled Hand Grips
- Emergency Power Disconnect
- Regenerative Braking
- Transistor Drive Control System (MOSFET)
- Steel Battery Case
- Rated: IP65
- “Pinwheel” Capability for Right Angle Stacking
