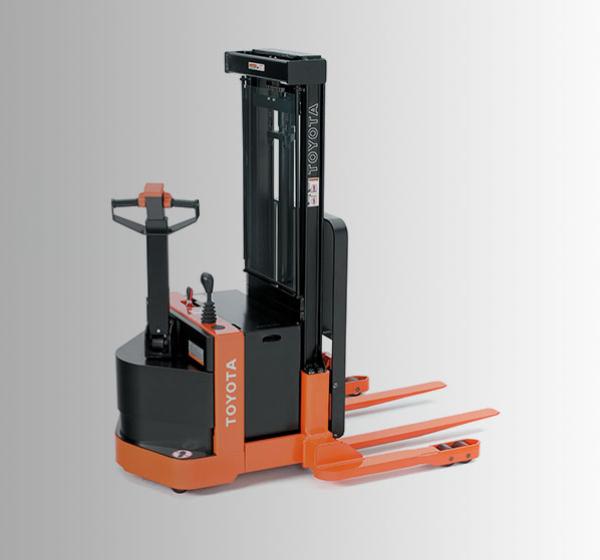

Toyota Industrial Walkie Stacker
| Make | Toyota |
| Model | Industrial Walkie Stacker |
| Type | Pallet Stacker |
How can we help?
Description
Overview
When a traditional forklift isn’t necessary but lifting product above a second-tier rack is, the Toyota Industrial Stacker is a cost-efficient, easy-to-use solution. With top-of-the-line durability and long-run performance, the Industrial Stacker is an economical complement to nearly any forklift fleet.
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Industrial Stacker operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Industrial Stacker can be an asset for your company for years to come.
Models
Industrial Walkie Stacker
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 6BSW11 | 2,200 | 2.9 | 32 | 6 | 81 |
| 6BWS15 | 3,000 | 2.9 | 32 | 6 | 85 |
| 6BWS20 | 4,000 | 2.6 | 27 | 6 | 88 |
Specifications
- Length to forkface: 38.4 - 47.9 in
- Load Capacity: 2,200 - 4,000 lb. Load Capacity
- Mast Lowered Height: 83 in
- Overall Width: 40 - 58 in
- Travel Speed Full Load: 2.6 - 2.9 mph Travel Speed Full Load
- Voltage: 24 Voltage
Features
- Steel Access Door
- Direction Reverse Switch In Control Handle
- Directional Thumb Control
- 12′ Lift Heights
- Reverse Polarity Protection Contactor
- Automatic Resetting Circuit Breaker
- Mechanical Drum Brake
- High-Visibility Mast
- On/Off Key Switch
- Power On Self Test
- FPM Lower Speed: 60
- Navigation in 7-8′ aisles
- MPH Travel Speed: 2.8
- Safety Glass Mast Guard
- Emergency Power Disconnect Switch
- UL-Approved Model Type E
- Up to 4,000 lb. Lifting Capacity
- SB-175 Red Connector
- MOSFET Programmable Controller
- Multifunction Control Handle
- Fully-Programmable Drive System
- Easy-Access Service Cover
- Electric Horn
- 24 Volt Electrical System
- Battery Compartment: 32.3″ x 13.3″ x Open Height
- Emissions: 0
