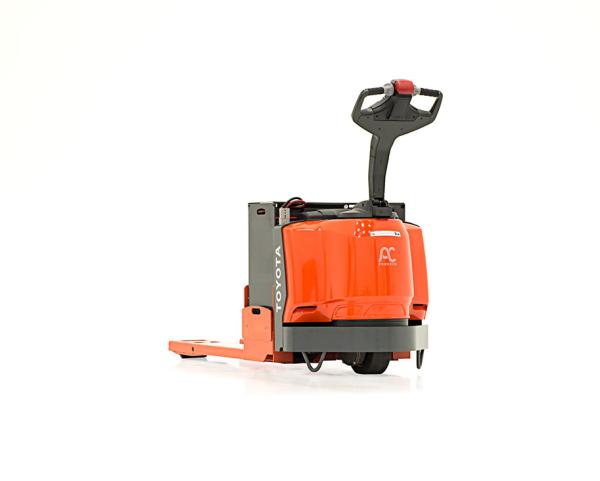

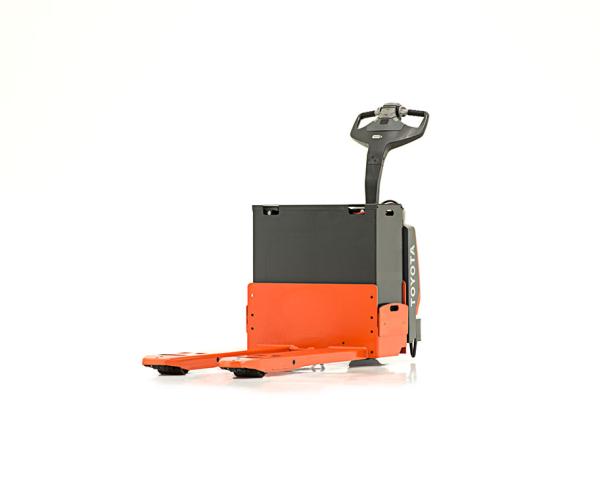

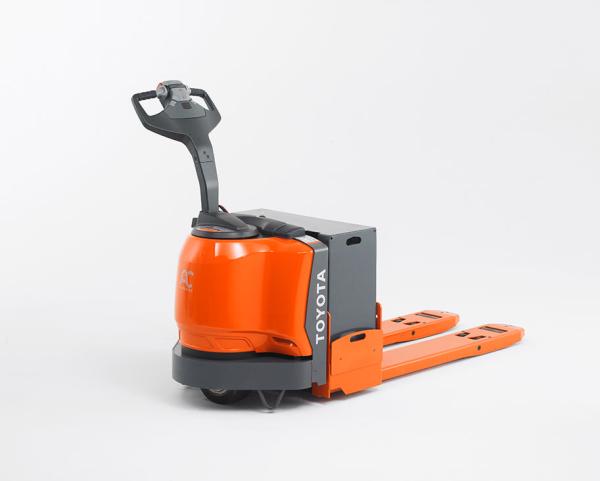

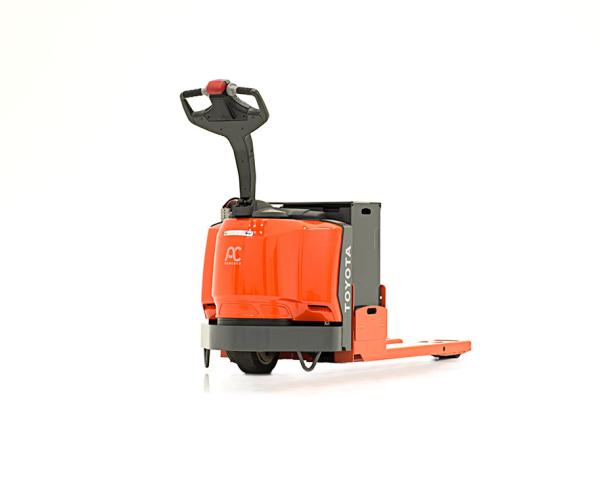

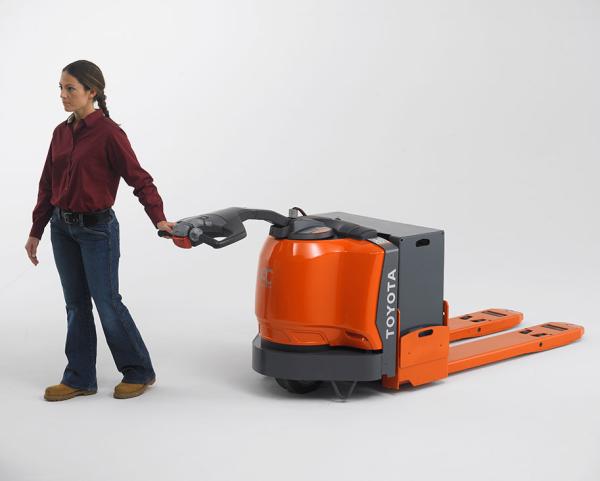

Toyota Large Electric Walkie Pallet Jack
| Make | Toyota |
| Model | Large Electric Walkie Pallet Jack |
| Type | Pallet Stacker |
How can we help?
Description
Overview

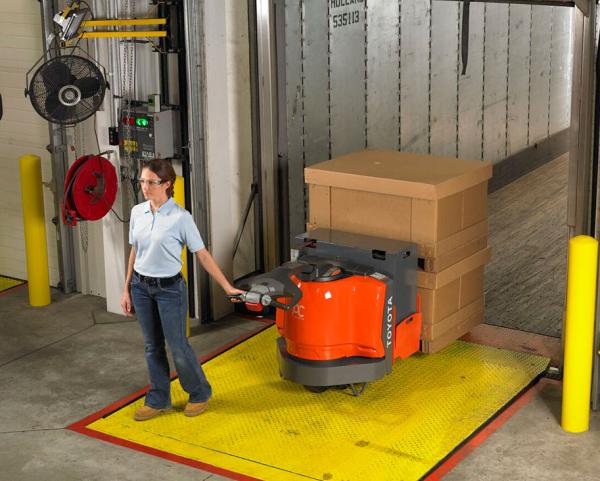

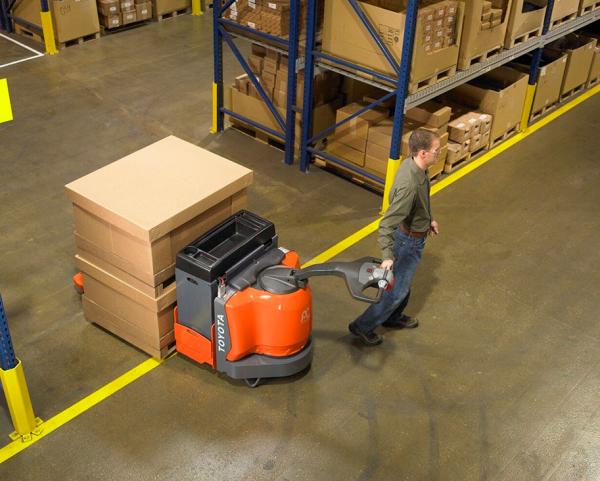

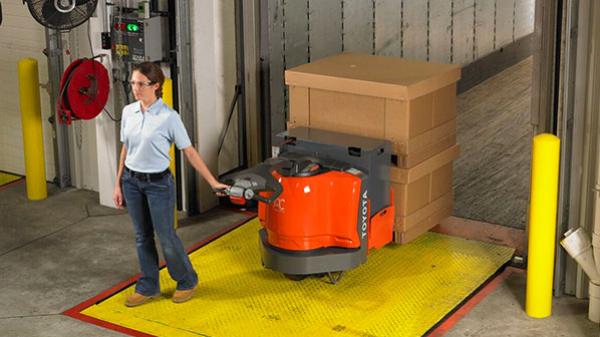

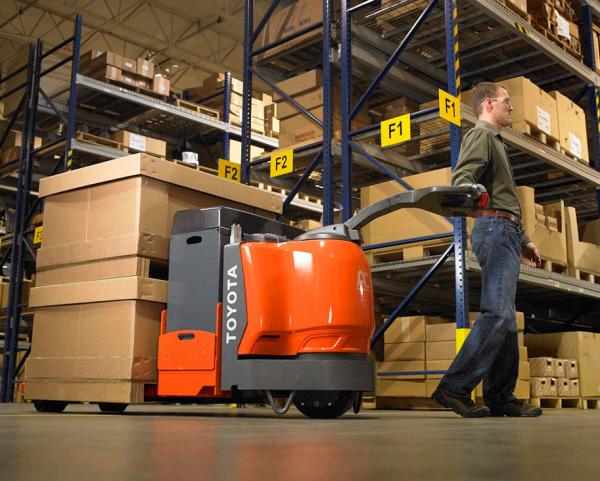

Toyota’s Large Electric Walkie Pallet Jack makes maneuvering heavy loads throughout the warehouse efficient, convenient and productive. Whether you are using a staging area for loading and unloading or you need a solution for here-and-there material handling jobs, the Large Electric Walkie Pallet Jack is an asset for nearly any application.
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Large Electric Pallet Jack operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Large Electric Pallet Jack can be an asset for your company for years to come.
Models
Large Electric Walkie Pallet Jack
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8HBW30 | 6000 | 3.7 | N/A | 10 | 81.2 |
Specifications
- Electrical System: 24 V Electrical System
- Height (Extended Handle): 56.7 in
- Load Capacity: 6,000 lb. Load Capacity
- Overall Length: 63.7 - 93.7 in
- Overall Width: 32.5 in
- Travel Speed Full Load: 3.7 mph Travel Speed Full Load
Features

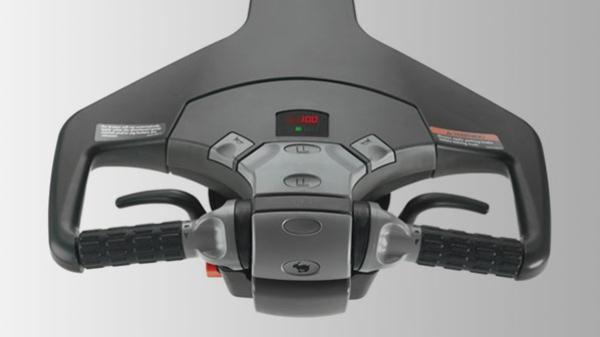

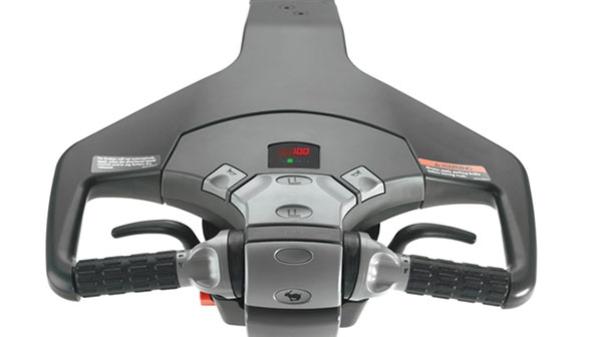

- MULTIFUNCTION CONTROL HANDLE
- AC DRIVE MOTOR
- Welded Construction with Reinforced Heavy-Duty Bumper
- One-Piece, Lightweight Service Access Cover
- SIDE-STABILIZER STEEL BARS
- CONTROLLER AREA NETWORK (CAN-BUS)
- 67.4 in. Turning Radius
- ELECTRIC HORN
- Programmable Performance
- WRAP-AROUND HAND GUARD
- Low-Effort Control Handle
- Up to 6,000 lbs. Carrying capacity
- Controller Area Network (CAN-bus) Communications
- Self-Adjusting Electric Disc Brake
- ON-BOARD SELF-DIAGNOSTICS
- Error Indicator with Self-Diagnostics
- volt motor: 24
- Intuitively Positioned Lift/Lower and Horn Buttons (Horn Button on 8TB50 Only)
- SPRING-LOADED CONTROL HANDLE
- Regenerative Braking
- 24 Volt Electrical System
- Fused Control and Power Circuits
- Emissions: 0
- RUNAWAY PROTECTION
- Dual Thumb Wheels for Directional Control and Travel Speed
- Multifunction Control Handle with Ergonomically Angled Hand Grips and Wrap-Around Hand Guard
- DIRECTIONAL REVERSE SWITCH ON CONTROL HANDLE
- Teflon® Coated PolyLube™ Lift Linkage Bushings (Maintenance Free)
- MPH Travel Speed: 3.7
- Highly Maneuverable
- AC Drive System
- AC Drive Motor (No Brushes or Commutator)
