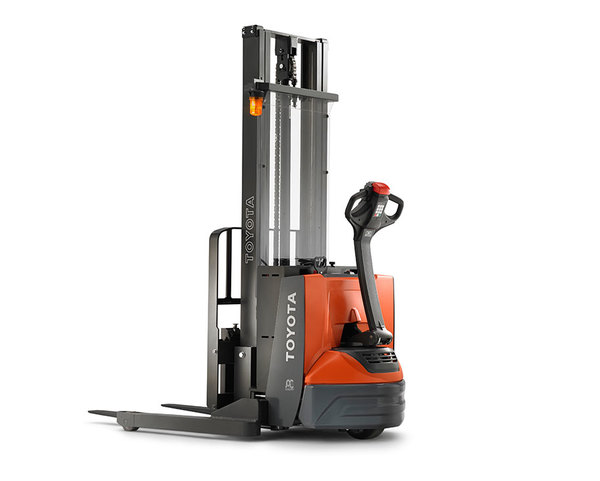

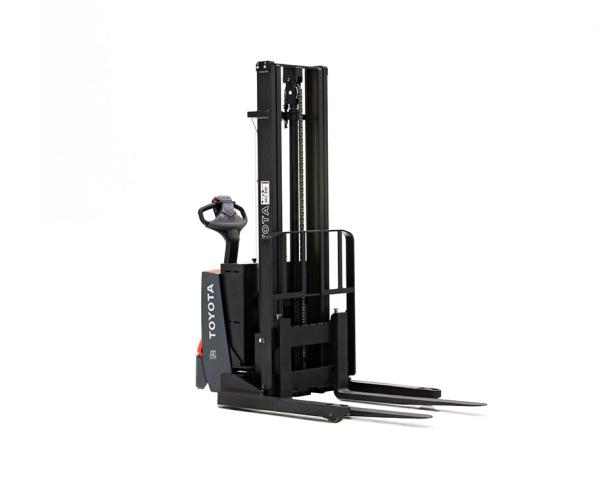

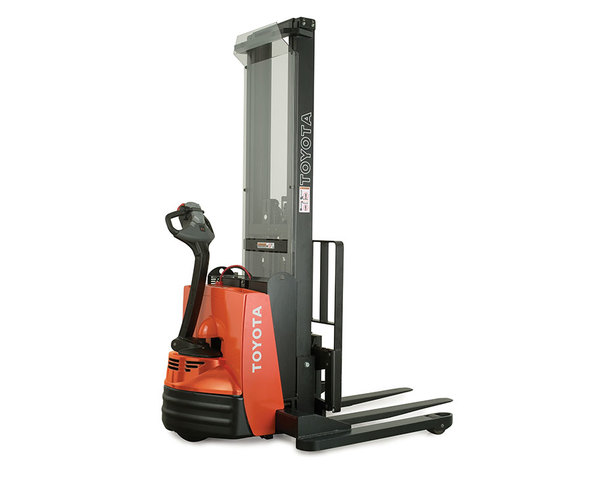

Toyota Walkie Stacker
| Make | Toyota |
| Model | Walkie Stacker |
| Type | Pallet Stacker |
How can we help?
Description
Overview

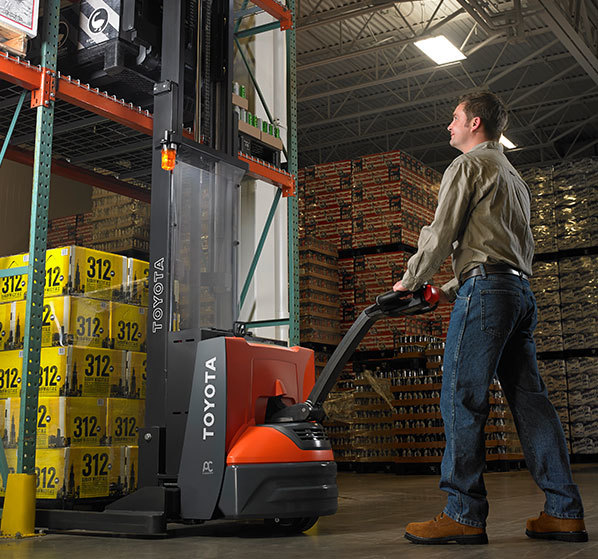

Toyota’s industry-leading Walkie Stacker includes adjustable baselegs to accommodate various pallet sizes and aisle widths. The versatility of this walk behind forklift makes it a strong complement to nearly any indoor application. Extremely durable and budget friendly, the Toyota Walkie Stacker Forklift can help increase both your uptime and your bottom line.
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Walkie Stacker operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Toyota Walkie Stacker can be an asset for your company for years to come.
Models
Walkie Stacker
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8BWS10 | 2000 | 3.4 | 20 - 53 | 6 | 86.7 |
| 8BWS13 | 2500 | 3.4 | 19 - 54 | 10 | 86.7 |
Specifications
- Electrical System: 24 V Electrical System
- Length to forkface: 35.6 in
- Load Capacity: 2,000 - 2,500 lb. Load Capacity
- Mast Lowered Height: 71 - 91 in
- Overall Width: 40 - 59 in
- Travel Speed Full Load: 3.4 mph Travel Speed Full Load
Features
- Programmable Service Indicator
- Rated: IP65
- 24 Volt Electrical System
- Direction Reverse Switch
- Emergency Power Disconnect Switch
- Navigation in 7-8′ aisles
- Click-to-Creep travel function
- Multifunction Control Handle with Ergonomically-Angled Hand Grips
- Up to 12′ Lift Heights
- Programmable Neutral Speed Reduction
- Stainless Steel Linkage Pins
- Regenerative Braking
- Electronic Brake Release
- Safety Glass Mast Guard
- Electric Horn
- Directional Thumb Wheels
- Heavy Duty Bumpers
- Battery Compartment: 27.3″L x 7.8″W x Open Height
- Up to 2,500 lb. Lifting Capacity
- 182º Steering Arc
- Rugged, All-Steel Frame Construction
- Class ‘F’ Motor Insulation
- Increased Bumper Clearance
- Click-to-Creep Function
- Bolt-On Mast Mounting
- IP65 Electrical System
- Volt Motor: 24
- Emissions: 0
- Fingertip Control of all Functions
- One-piece High-Strength Service Cover
- 32″ to 51″ Straddle Openings Available
- Controller Area Network (CAN-Bus) Communication
- Battery Discharge Indicator & Correction With Lift Interrupt
- Transistor Drive Control System (MOSFET)
- Programmable Performance
- AC Drive Motor
- Error Indicator with Self-Diagnostics
