Overview

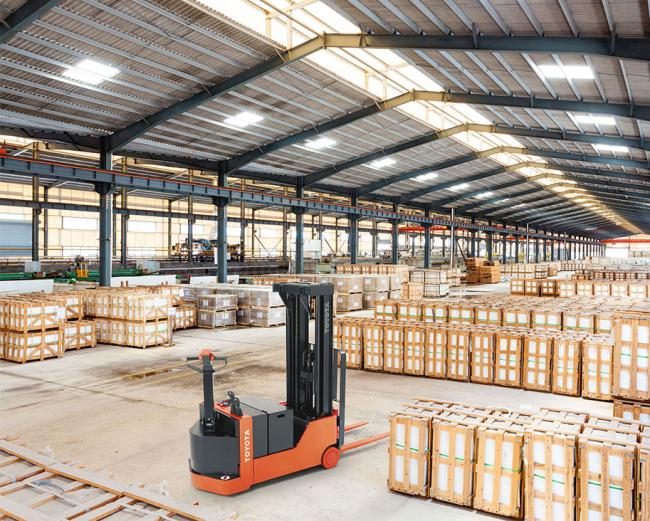

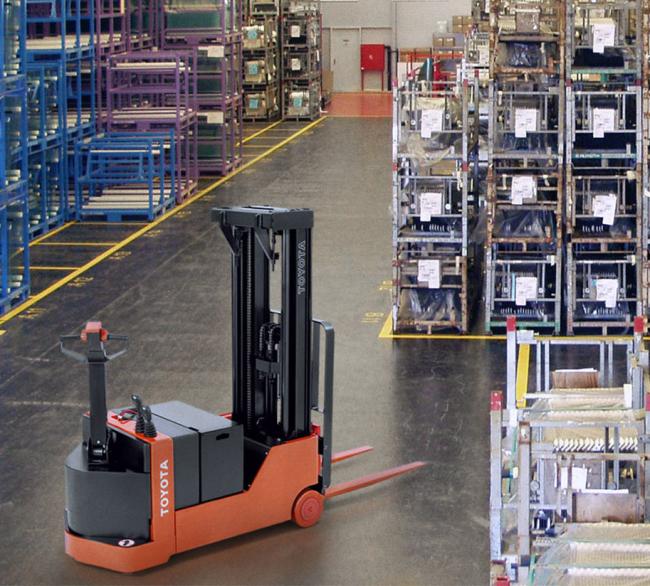

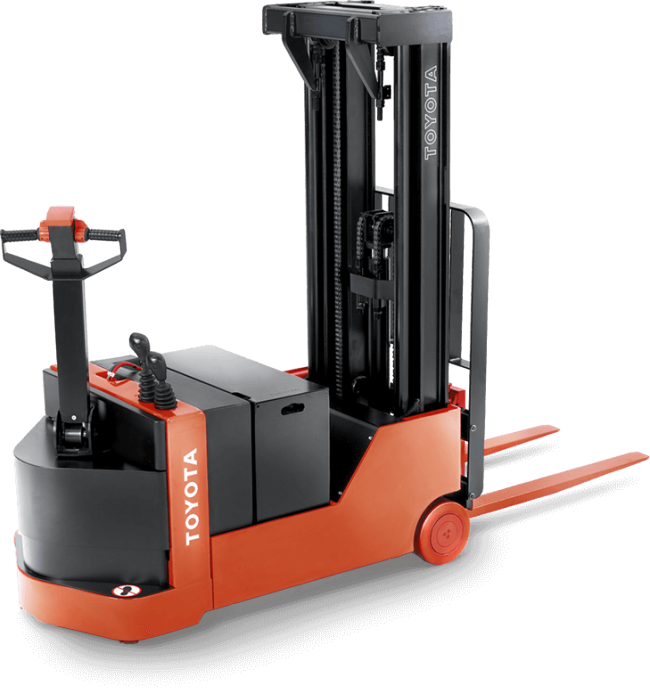

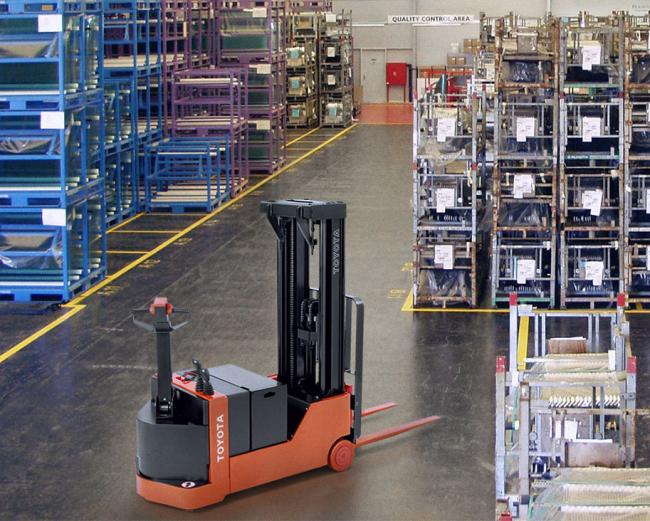

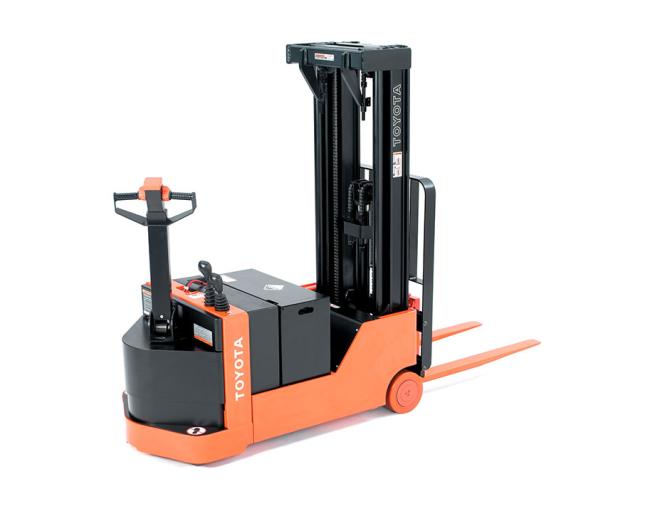

Toyota’s Counterbalanced Electric Pallet Stacker is a nimble, highly-versatile lift that complements nearly any primarily indoor application. Balanced similar to a traditional forklift and without baselegs, the Counterbalanced Electric Stacker can fit into tight spaces. Extremely durable and budget friendly, the Toyota Counterbalanced Stacker can help increase both your uptime and your bottom line.

Continued Performance

According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Counter-Balanced Stacker operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Counter-Balanced Stacker can be an asset for your company for years to come.

Overview

Continued Performance

Features

Fully-Programmable Drive System
Directional Thumb Control
24 Volt Electrical System
Reverse Polarity Protection Contactor
Steel Access Door
Pressure-Overload Relief Valve and Lowering Control Fuses
Multifunction Control Handle
Volt Motor: 24
9-10&prime; Aisle Widths
High Visibility Mast
Emergency Power Disconnect Switch
Up to 15&prime; Lift Height
30-Inch Wide ITA Class II Hook-Type Carriage
MOSFET Programmable Controller
Direction Reverse Switch In Control Handle
Automatic Resetting Circuit Breaker
UL-Approved Model Type E
Easy-Access Service Cover
FPM Lift Speed: 37
Electric Horn
Power On Self Test
High-Visibility Mast
Up to 4,000 lb. Lifting Capacity
Mechanical Drum Brake
On/Off Key Switch
Emissions: 0
SB-175 Red Connector

Specifications

Length to Forkface:	64.8 - 76.6 in
Load Capacity:	2,000 - 4,000 lb. Load Capacity
Mast Lowered Height:	83 in
Overall Width:	34.1 in
Travel Speed Full Load:	2.8 - 3 mph Travel Speed Full Load
Voltage:	24 Voltage

Counter-Balanced Stacker

Model Number	Load Capacity* (lbs.)	Max. Travel Speed Full Load (MPH)	Max. Lift Speed Full Load (FPM)	Max. Gradeability Full Load (%)	Basic Right Angle Stack** (IN.)
6BWC10	2,000	2.9	37	6	111
6BWC15	3,000	3	32	6	116
6BWC20	4,000	2.8	27	6	122

Features
Features
- Fully-Programmable Drive System
- Directional Thumb Control
- 24 Volt Electrical System
- Reverse Polarity Protection Contactor
- Steel Access Door
- Pressure-Overload Relief Valve and Lowering Control Fuses
- Multifunction Control Handle
- Volt Motor: 24
- 9-10&prime; Aisle Widths
- High Visibility Mast
- Emergency Power Disconnect Switch
- Up to 15&prime; Lift Height
- 30-Inch Wide ITA Class II Hook-Type Carriage
- MOSFET Programmable Controller
- Direction Reverse Switch In Control Handle
- Automatic Resetting Circuit Breaker
- UL-Approved Model Type E
- Easy-Access Service Cover
- FPM Lift Speed: 37
- Electric Horn
- Power On Self Test
- High-Visibility Mast
- Up to 4,000 lb. Lifting Capacity
- Mechanical Drum Brake
- On/Off Key Switch
- Emissions: 0
- SB-175 Red Connector

Specifications

Length to Forkface:	64.8 - 76.6 in
Load Capacity:	2,000 - 4,000 lb. Load Capacity
Mast Lowered Height:	83 in
Overall Width:	34.1 in
Travel Speed Full Load:	2.8 - 3 mph Travel Speed Full Load
Voltage:	24 Voltage

Downloads & Documentation
Links

Details

Counter-Balanced Stacker

Model Number	Load Capacity* (lbs.)	Max. Travel Speed Full Load (MPH)	Max. Lift Speed Full Load (FPM)	Max. Gradeability Full Load (%)	Basic Right Angle Stack** (IN.)
6BWC10	2,000	2.9	37	6	111
6BWC15	3,000	3	32	6	116
6BWC20	4,000	2.8	27	6	122
