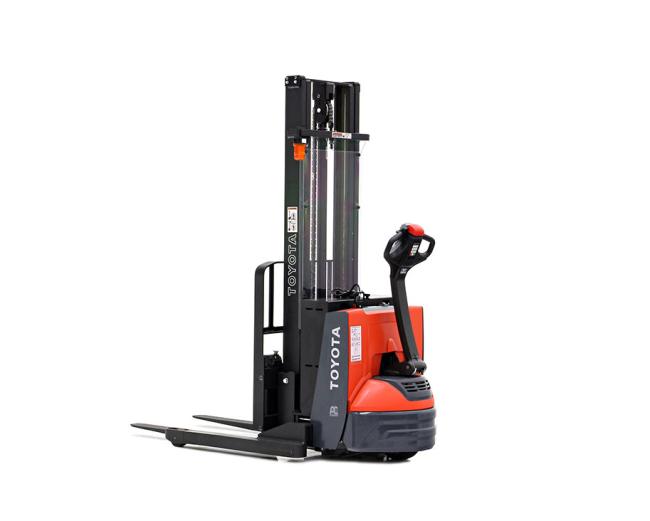

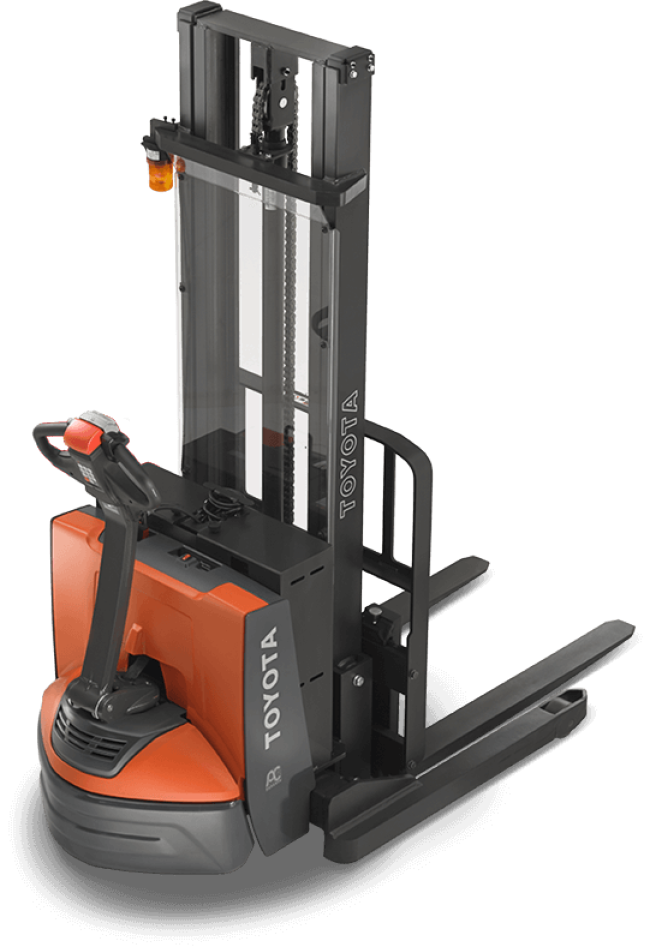

Toyota Walkie Stacker

Pallet Stacker

How can we help?

(555) 555-5555

Overview

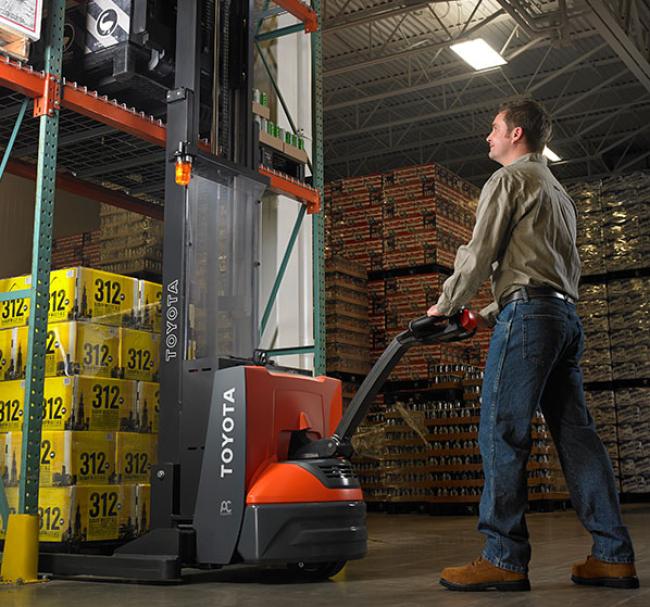

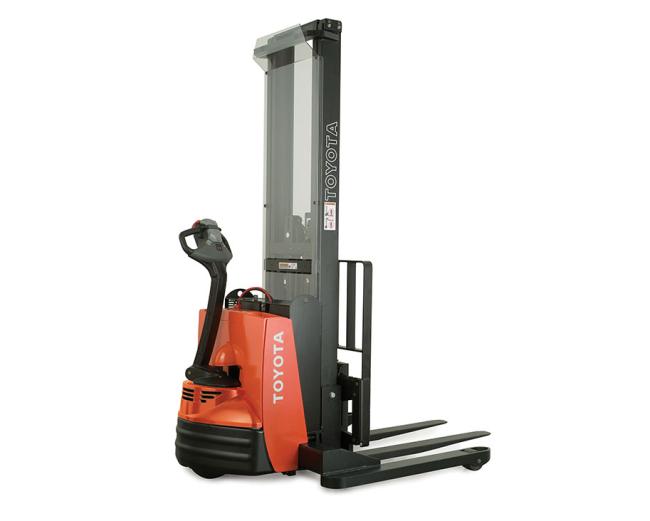

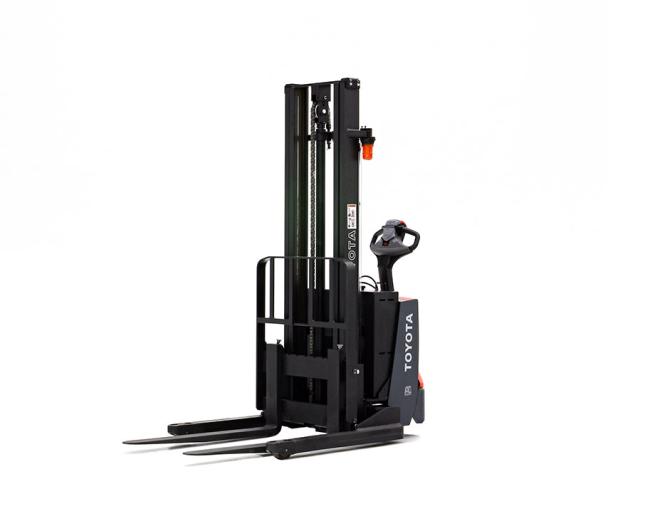

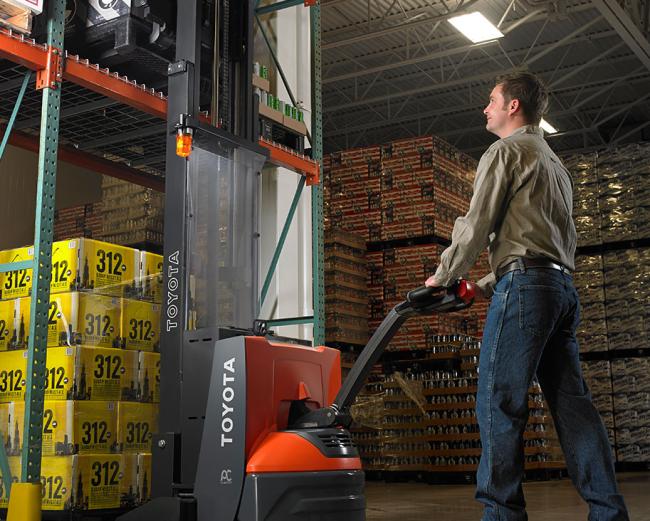

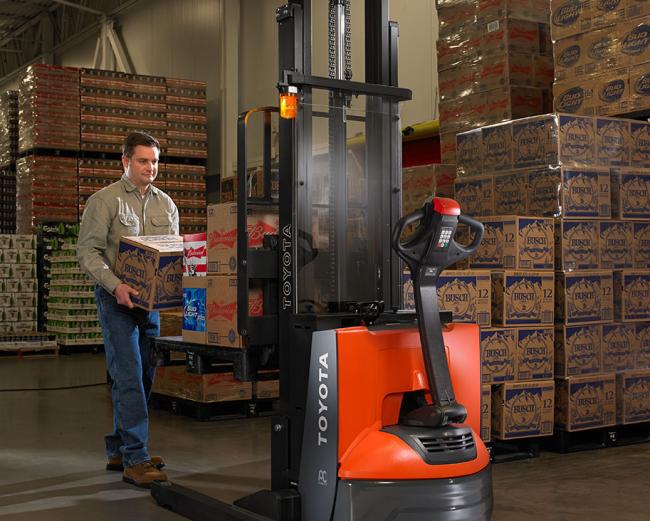

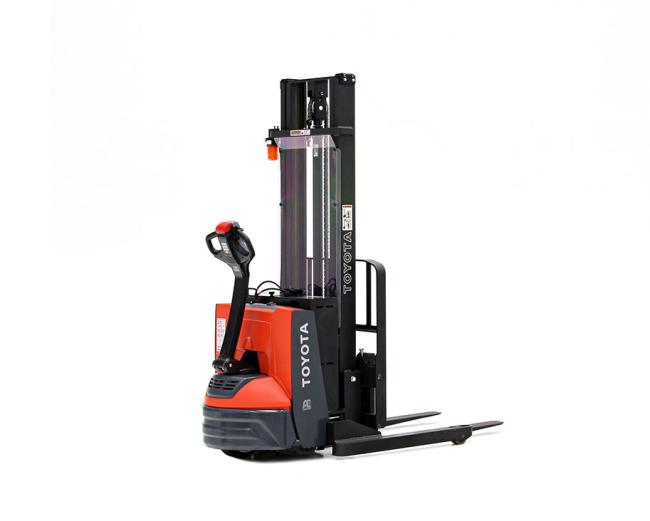

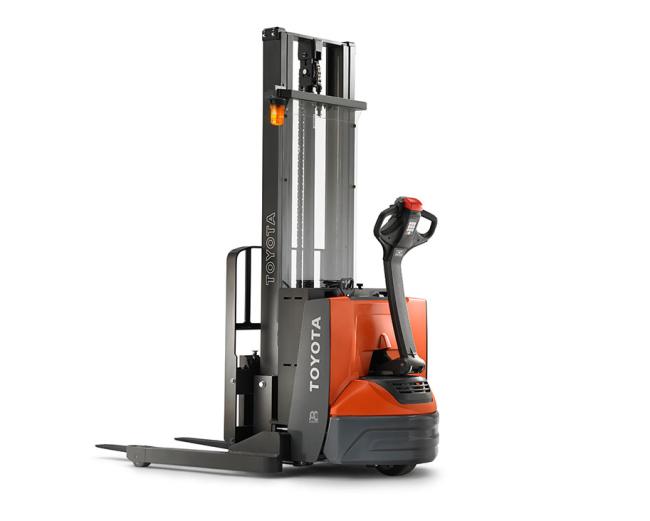

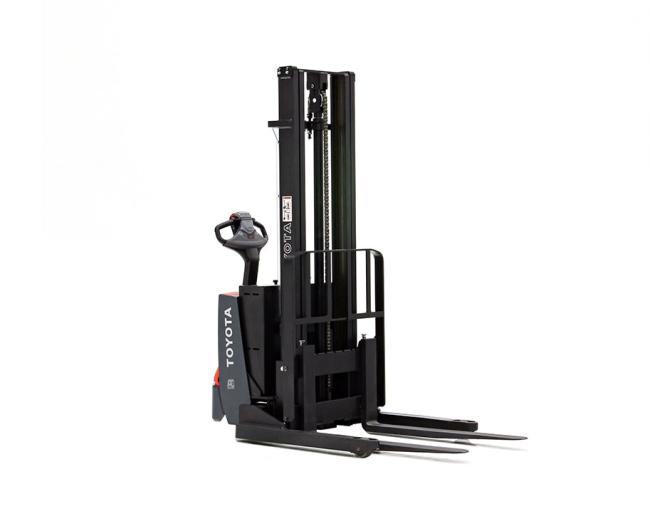

Toyota’s industry-leading Walkie Stacker includes adjustable baselegs to accommodate various pallet sizes and aisle widths. The versatility of this walk behind forklift makes it a strong complement to nearly any indoor application. Extremely durable and budget friendly, the Toyota Walkie Stacker Forklift can help increase both your uptime and your bottom line.

Continued Performance

According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Walkie Stacker operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Toyota Walkie Stacker can be an asset for your company for years to come.

Overview

Continued Performance

Features

Emissions: 0
Direction Reverse Switch
Heavy Duty Bumpers
AC Drive Motor
Class &lsquo;F&rsquo; Motor Insulation
IP65 Electrical System
Up to 2,500 lb. Lifting Capacity
Electric Horn
Emergency Power Disconnect Switch
182&ordm; Steering Arc
Electronic Brake Release
Click-to-Creep travel function
Stainless Steel Linkage Pins
Increased Bumper Clearance
32&Prime; to 51&Prime; Straddle Openings Available
Rated: IP65
Volt Motor: 24
Programmable Performance
Regenerative Braking
Programmable Neutral Speed Reduction
Multifunction Control Handle with Ergonomically-Angled Hand Grips
Fingertip Control of all Functions
Error Indicator with Self-Diagnostics
24 Volt Electrical System
Battery Discharge Indicator &amp; Correction With Lift Interrupt
Click-to-Creep Function
Controller Area Network (CAN-Bus) Communication
One-piece High-Strength Service Cover
Bolt-On Mast Mounting
Up to 12&prime; Lift Heights
Rugged, All-Steel Frame Construction
Safety Glass Mast Guard
Programmable Service Indicator
Directional Thumb Wheels
Battery Compartment: 27.3&Prime;L x 7.8&Prime;W x Open Height
Transistor Drive Control System (MOSFET)
Navigation in 7-8&prime; aisles

Specifications

Electrical System:	24 V Electrical System
Length to forkface:	35.6 in
Load Capacity:	2,000 - 2,500 lb. Load Capacity
Mast Lowered Height:	71 - 91 in
Overall Width:	40 - 59 in
Travel Speed Full Load:	3.4 mph Travel Speed Full Load

Walkie Stacker

Model Number	Load Capacity* (lbs.)	Max. Travel Speed Full Load (MPH)	Max. Lift Speed Full Load (FPM)	Max. Gradeability Full Load (%)	Basic Right Angle Stack** (IN.)
8BWS10	2000	3.4	20 - 53	6	86.7
8BWS13	2500	3.4	19 - 54	10	86.7

Features
Features
- Emissions: 0
- Direction Reverse Switch
- Heavy Duty Bumpers
- AC Drive Motor
- Class &lsquo;F&rsquo; Motor Insulation
- IP65 Electrical System
- Up to 2,500 lb. Lifting Capacity
- Electric Horn
- Emergency Power Disconnect Switch
- 182&ordm; Steering Arc
- Electronic Brake Release
- Click-to-Creep travel function
- Stainless Steel Linkage Pins
- Increased Bumper Clearance
- 32&Prime; to 51&Prime; Straddle Openings Available
- Rated: IP65
- Volt Motor: 24
- Programmable Performance
- Regenerative Braking
- Programmable Neutral Speed Reduction
- Multifunction Control Handle with Ergonomically-Angled Hand Grips
- Fingertip Control of all Functions
- Error Indicator with Self-Diagnostics
- 24 Volt Electrical System
- Battery Discharge Indicator &amp; Correction With Lift Interrupt
- Click-to-Creep Function
- Controller Area Network (CAN-Bus) Communication
- One-piece High-Strength Service Cover
- Bolt-On Mast Mounting
- Up to 12&prime; Lift Heights
- Rugged, All-Steel Frame Construction
- Safety Glass Mast Guard
- Programmable Service Indicator
- Directional Thumb Wheels
- Battery Compartment: 27.3&Prime;L x 7.8&Prime;W x Open Height
- Transistor Drive Control System (MOSFET)
- Navigation in 7-8&prime; aisles

Specifications

Electrical System:	24 V Electrical System
Length to forkface:	35.6 in
Load Capacity:	2,000 - 2,500 lb. Load Capacity
Mast Lowered Height:	71 - 91 in
Overall Width:	40 - 59 in
Travel Speed Full Load:	3.4 mph Travel Speed Full Load

Downloads & Documentation
Links

Details

Walkie Stacker

Model Number	Load Capacity* (lbs.)	Max. Travel Speed Full Load (MPH)	Max. Lift Speed Full Load (FPM)	Max. Gradeability Full Load (%)	Basic Right Angle Stack** (IN.)
8BWS10	2000	3.4	20 - 53	6	86.7
8BWS13	2500	3.4	19 - 54	10	86.7
