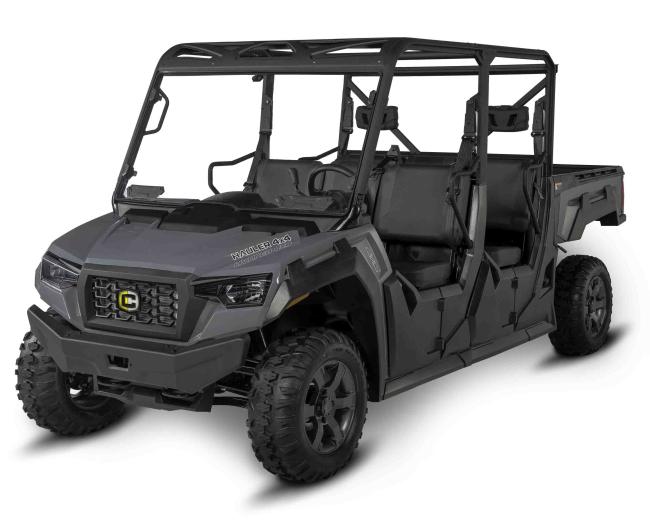

Cushman Hauler® 4x4 Crew

Crawler Dozers

How can we help?

(555) 555-5555

Overview

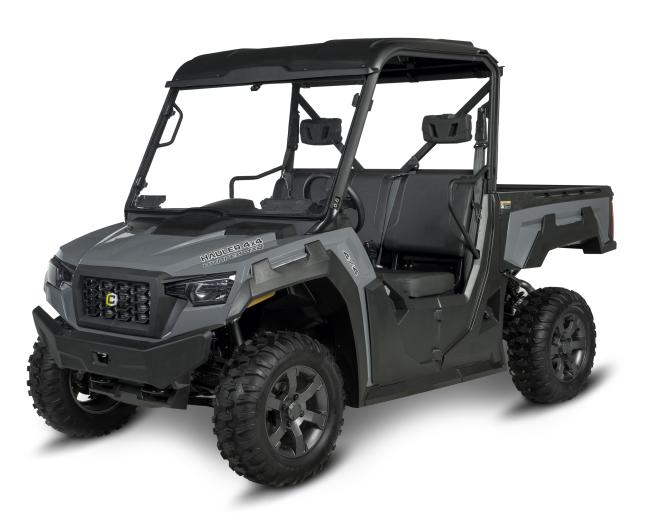

Bring more power and durability to your job site with the new Cushman® Hauler® 4x4 series of vehicles. Available in a quiet 50-hp gas or robust 25-hp diesel engine with a 1500-lb load capacity, these vehicles will tackle your most strenuous tasks without breaking a sweat.

Overview

Features

1,500-lb Vehicle Load Capacity
6-Passenger
3-Passenger
1,000-lb Bed Load Capacity
2,000-lb Towing Capacity
50-hp Gas Engine
Electronic Power Steering
14.72-cu-ft Cargo Bed
25-hp Diesel Engine

Specifications

Air Cleaner:	2 Stage Air Cleaner
Battery (Qty/Type):	One 12-Volt Maintenance Free
Bed Load Capacity:	1000 lb (453.6 kg)
Body &amp;amp; Finish:	TPO Molded in Color
Cargo Deck Capacity:	14.68 cu. ft. (0.42 cu. m.)
Cargo Deck Material:	Poly
Cooling System:	Liquid with Fan
Curb Weight:	1,657 lb (751.6 kg)
Drive Train:	Continuously Variable Transmission (CVT)
Electrical System:	12V, Alternator
Frame:	Welded Steel with E-Shield™ ecoat plus DuraShield™ Powder Coat
Fuel Capacity:	10 gal (37.9 L)
Gear Selection:	Mechanical, Steering Column Mounted
Ground Clearance:	10.75 in (27.4 cm)
Horsepower (KW):	50 HP, (37.3 kW)
Key or Pedal Start:	Key
Oil Filter:	Automotive, Screw On
Overall Height:	74 in (188 cm)
Overall Length:	126 in (320 cm)
Overall Width:	63 in (160 cm)
Parking Brake:	Parking Gear, Activated Via Shifter
Power Source:	50 HP, 812 cc, 4 Stroke Gas Engine
Seating Capacity:	3-Person
Service Brake:	Dual Piston Front/Single Piston Rear Calipers
Speed:	25 mph (40.2 kph)
Standard Color:	Dynamic Charcoal
Steering:	Rack and Pinion, Tilt Steering Wheel
Suspension:	(Front) Double A-Arm with 10 in (25.4 cm) Travel; (Rear) Double A-Arm with 9.5 in (24.1 cm) Travel
Tires:	25 x 10.5 - 12 All Terrain
Towing Capacity:	2000 lb (907.2 kg)
Transaxle:	2/4WD Front, Selectable Locking Rear
Valve Train:	3 Cylinder DOHC
Vehicle Load Capacity:	1500 lb (680.4 kg)
Wheel Base:	85 in (215.9 cm)
Wheel Track:	51 in (129.5 cm)

Model Table

	Hauler 4x4 Gas	Hauler 4x4 Diesel	Hauler 4x4 Crew Gas	Hauler 4x4 Crew Diesel
Power Source	50 HP, 812 cc, 4 Stroke Gas Engine	25 HP (18.6 kW), 1.03L Liquid Cooled, 3 Cylinder Diesel Engine	50 HP, 812 cc, 4 Stroke Gas Engine	25 HP (18.6 kW), 1.03L Liquid Cooled, 3 Cylinder Diesel Engine
Valve Train	3 Cylinder DOHC	3 Cylinder	3 Cylinder DOHC	3 Cylinder
Horsepower (KW)	50 HP, (37.3 kW)	25 HP, 1028 cc	50 HP, (37.3 kW)	25 HP, 1028 cc
Curb Weight	1,657 lb (751.6 kg)	1,608 lb (729.4 kg)	1,931 lb (875.9 kg)	1,931 lb (875.9 kg)

Features
Features
- 1,500-lb Vehicle Load Capacity
- 6-Passenger
- 3-Passenger
- 1,000-lb Bed Load Capacity
- 2,000-lb Towing Capacity
- 50-hp Gas Engine
- Electronic Power Steering
- 14.72-cu-ft Cargo Bed
- 25-hp Diesel Engine

Specifications

Air Cleaner:	2 Stage Air Cleaner
Battery (Qty/Type):	One 12-Volt Maintenance Free
Bed Load Capacity:	1000 lb (453.6 kg)
Body &amp;amp; Finish:	TPO Molded in Color
Cargo Deck Capacity:	14.68 cu. ft. (0.42 cu. m.)
Cargo Deck Material:	Poly
Cooling System:	Liquid with Fan
Curb Weight:	1,657 lb (751.6 kg)
Drive Train:	Continuously Variable Transmission (CVT)
Electrical System:	12V, Alternator
Frame:	Welded Steel with E-Shield™ ecoat plus DuraShield™ Powder Coat
Fuel Capacity:	10 gal (37.9 L)
Gear Selection:	Mechanical, Steering Column Mounted
Ground Clearance:	10.75 in (27.4 cm)
Horsepower (KW):	50 HP, (37.3 kW)
Key or Pedal Start:	Key
Oil Filter:	Automotive, Screw On
Overall Height:	74 in (188 cm)
Overall Length:	126 in (320 cm)
Overall Width:	63 in (160 cm)
Parking Brake:	Parking Gear, Activated Via Shifter
Power Source:	50 HP, 812 cc, 4 Stroke Gas Engine
Seating Capacity:	3-Person
Service Brake:	Dual Piston Front/Single Piston Rear Calipers
Speed:	25 mph (40.2 kph)
Standard Color:	Dynamic Charcoal
Steering:	Rack and Pinion, Tilt Steering Wheel
Suspension:	(Front) Double A-Arm with 10 in (25.4 cm) Travel; (Rear) Double A-Arm with 9.5 in (24.1 cm) Travel
Tires:	25 x 10.5 - 12 All Terrain
Towing Capacity:	2000 lb (907.2 kg)
Transaxle:	2/4WD Front, Selectable Locking Rear
Valve Train:	3 Cylinder DOHC
Vehicle Load Capacity:	1500 lb (680.4 kg)
Wheel Base:	85 in (215.9 cm)
Wheel Track:	51 in (129.5 cm)

Downloads & Documentation
Links
- Hauler 4x4 Sell Sheet

Details

Model Table

	Hauler 4x4 Gas	Hauler 4x4 Diesel	Hauler 4x4 Crew Gas	Hauler 4x4 Crew Diesel
Power Source	50 HP, 812 cc, 4 Stroke Gas Engine	25 HP (18.6 kW), 1.03L Liquid Cooled, 3 Cylinder Diesel Engine	50 HP, 812 cc, 4 Stroke Gas Engine	25 HP (18.6 kW), 1.03L Liquid Cooled, 3 Cylinder Diesel Engine
Valve Train	3 Cylinder DOHC	3 Cylinder	3 Cylinder DOHC	3 Cylinder
Horsepower (KW)	50 HP, (37.3 kW)	25 HP, 1028 cc	50 HP, (37.3 kW)	25 HP, 1028 cc
Curb Weight	1,657 lb (751.6 kg)	1,608 lb (729.4 kg)	1,931 lb (875.9 kg)	1,931 lb (875.9 kg)
