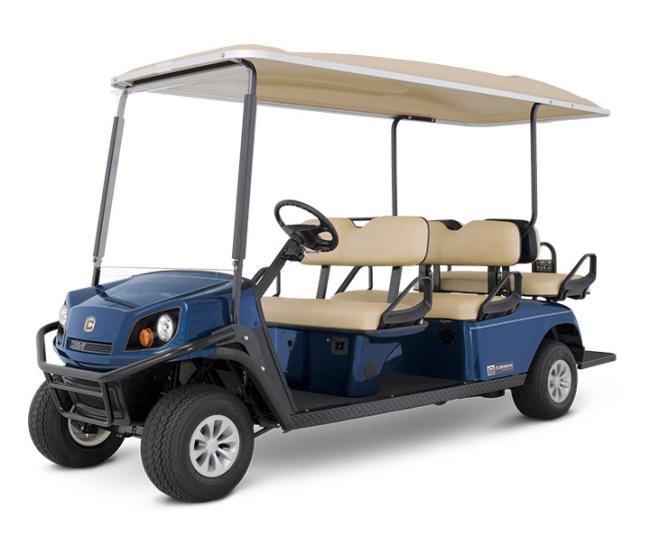

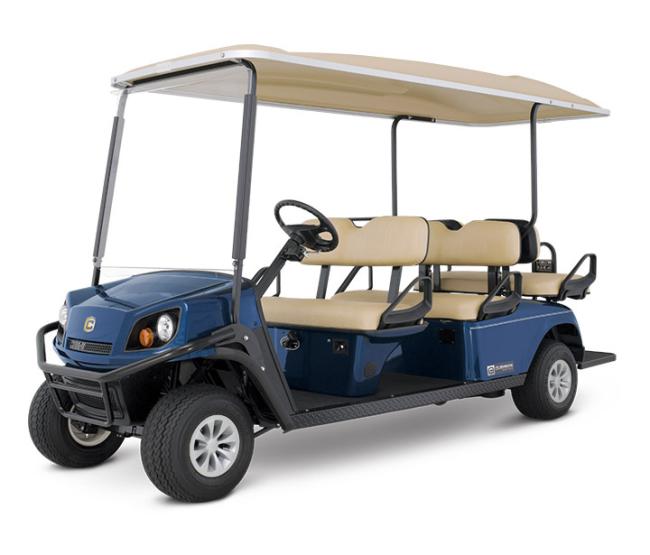

Cushman Shuttle 6
Crawler Dozers
How can we help?
(555) 555-5555
Features
-
1,200-lb Vehicle Load Capacity
-
72V Electric Drivetrain
-
13.5-hp EFI Gas Engine
-
6-Passenger Seating
Specifications
Air Cleaner: |
Replaceable Dry Cartridge |
Battery Charger: |
One, 12V Maintenance Free |
Body & Finish: |
Injection Molded TPO |
Cooling System: |
Air Cooled |
Curb Weight: |
1164 lb (528 kg) |
Drive Train: |
Continuously Variable Transmission (CVT) |
Electrical System: |
Starter/Generator. Solid State Reg. |
Frame: |
Welded Steel w/ DuraShield™ Powder Coat |
Fuel Capacity: |
6 Gallon (22.7 L) Tank |
Gear Selection: |
Forward - Reverse |
Ground Clearance: |
4.3 in (11 cm) |
Horsepower (KW): |
13.5 hp (10.1 kW) |
Key or Pedal Start: |
Pedal |
Lubrication: |
Pressurized Oil System |
Oil Filter: |
Spin-On |
Outside Clearance Circle: |
25.5 ft (7.8 m) |
Overall Height: |
48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof) |
Overall Length: |
136.0 in (345 cm) |
Overall Width: |
48.5 in (123 cm) |
Parking Brake: |
Self-Compensating, Single-Point Engagement |
Power Source: |
4-Cycle, 24.5 ci (401cc) |
Rear Axle Ratio: |
11.47:1 (Forward) 14.35:1 (Reverse) |
Seating Capacity: |
6-Person |
Service Brake: |
Rear Wheel Mechanical, Self-Adjusting Drum |
Speed: |
14 mph ± 0.5 mph (22.5 kph ± 0.8 kph) |
Speed Controller: |
- |
Standard Color: |
Patriot Blue |
Steering: |
Self-Compensating Rack & Pinion |
Suspension: |
Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) |
Tires: |
18 x 8.5 - 8 (4 Ply Rated) |
Transaxle: |
Differential w/ Helical Gears |
Valve Train: |
Single Cylinder OHV |
Vehicle Load Capacity: |
1200 lb (544 kg) |
Wheel Base: |
93.5 in (237 cm) |
Wheel Track: |
34.2 in (87 cm) Front 38.0 in (97 cm) Rear |
Model Table
| Shuttle 6 EFI Gas | Shuttle 6 Electric | |
|---|---|---|
| Standard Color | Patriot Blue | Ivory |
| Power Source | 4-Cycle, 24.5 ci (401cc) | 72V DC |
| Valve Train | Single Cylinder OHV | 22.4 hp (16.7 kW) Intermittent |
| Horsepower (KW) | 13.5 hp (10.1 kW) | 72V |
| Electrical System | Starter/Generator. Solid State Reg. | Six, 12V Deep Cycle |
| Battery Charger | One, 12V Maintenance Free | 1000 Watt, 72V, 120/230V VAC UL Listed |
| Air Cleaner | Replaceable Dry Cartridge | - |
| Lubrication | Pressurized Oil System | - |
| Oil Filter | Spin-On | - |
| Cooling System | Air Cooled | - |
| Fuel Capacity | 6 Gallon (22.7 L) Tank | - |
| Speed Controller | - | 350 Amp AC |
| Drive Train | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
| Gear Selection | Forward - Reverse | Dash-Mounted Forward-Neutral-Reverse |
| Rear Axle Ratio | 11.47:1 (Forward) 14.35:1 (Reverse) | 17:1 |
| Weight w/o Batteries | - | 964 lb (437 kg) |
| Curb Weight | 1164 lb (528 kg) | 1456 lb (660 kg) |
| Speed | 14 mph ± 0.5 mph (22.5 kph ± 0.8 kph) | High Speed 16.5 mph ± 0.5 mph (26.4 kph ± 0.8 kph), Low Speed 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum | Rear wheel mechanical self-adjusting drum, Regenerative braking |
| Tires | 18 x 8.5 - 8 (4 Ply Rated) | 18 x 8.50 - 8 (4 Ply Rated) |
