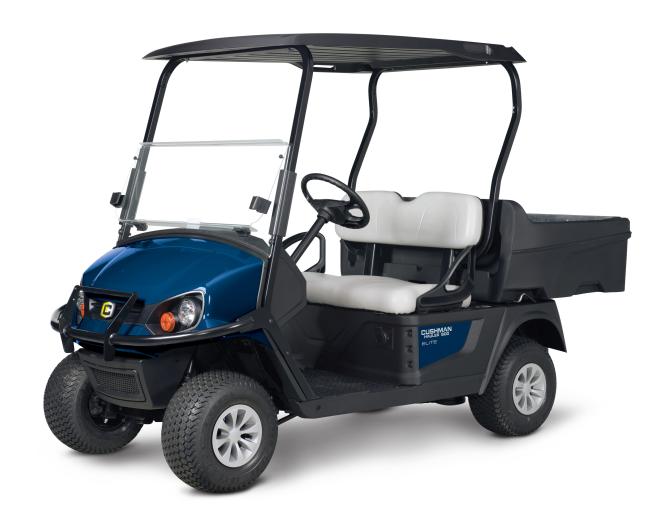

Cushman Hauler 800 ELiTE

Crawler Dozers

How can we help?

(555) 555-5555

Overview

With faster charge time, consistent performance, increased range and a lightweight footprint, Hauler 800 ELiTE vehicles are designed to maximize productivity and decrease energy costs. A highly customizable bed, functional dash and a range of options make Hauler 800 ELiTE vehicles a must have for your crew.

Overview

Features

325-lb Bed Load Capacity
56V AC Lithium
Cost Saving Efficiency
8.4-cu-ft Cargo Bed
400-lb Bed Load Capacity
800-lb Vehicle Load Capacity
Zero Maintenance Batteries
5-Year Battery Warranty
Lightweight Footprint
725-lb Vehicle Load Capacity

Specifications

Battery (Qty/Type):	Two Lithium Ion 56 Volt
Bed Load Capacity:	400 lb (181 kg)
Body &amp;amp; Finish:	Injection Molded TPO (front), Injection Molded PP (rear)
Cargo Deck Capacity:	8.4 cu ft (0.24 m3)
Curb Weight:	803 lb (364 kg)
Drive Train:	Motor Shaft Direct Drive
Electrical System:	56-Volt
Frame:	Welded steel with E-Shield ecoat plus DuraShield™ powder coat
Gear Selection:	Dash Mount Forward-Neutral-Reverse
Ground Clearance:	4.3 in (11 cm)
Horsepower (KW):	11.7 HP (8.7 kW) Peak
Key or Pedal Start:	Pedal
Outside Clearance Circle:	18.9 ft (5.76 m)
Overall Height:	47 in (120 cm)
Overall Length:	110 in (280 cm)
Overall Width:	49 in (125 cm)
Parking Brake:	Self-compensating, Single Point Engagement
Power Source:	56-Volt AC Drive
Rear Axle Ratio:	16.99:1
Seating Capacity:	2 Person
Service Brake:	Rear Wheel Mechanical Self-adjusting Drum
Speed:	14.5 +/-0.5 mph (23.3 +/- 0.8 kph)
Standard Color:	Forest Green or Patriot Blue
Steering:	Self-Compensating Rack and Pinion
Suspension:	Leaf Springs with Hydraulic Shock Absorbers
Tires:	18 x 8.5 - 8 (6 ply rated)
Towing Capacity:	900 lb (408 kg)
Transaxle:	Differential with Helical Gears
Vehicle Load Capacity:	800 lb (360 kg)
Wheel Base:	65.5 in (166 cm)
Wheel Track:	37.0 in (94 cm) Front / 38.0 in (97 cm) Rear

Model Table

	Hauler 800 ELiTE	Hauler 800X ELiTE
Overall Height	47 in (120 cm)	51 in (130 cm)
Ground Clearance	4.3 in (11 cm)	5.5 in (14 cm)
Curb Weight	803 lb (364 kg)	797 lb (361 kg)
Vehicle Load Capacity	800 lb (360 kg)	725 lb (328 kg)
Bed Load Capacity	400 lb (181 kg)	325 lb (147.4 kg)
Towing Capacity	900 lb (408 kg)	500 lb (230 kg)
Speed	14.5 +/-0.5 mph (23.3 +/- 0.8 kph)	16.5 mph ± 0.5 mph (26.5 kph ± 0.8 kph)
Steering	Self-Compensating Rack and Pinion	Self-Compensating Rack and Pinion

Features
Features
- 325-lb Bed Load Capacity
- 56V AC Lithium
- Cost Saving Efficiency
- 8.4-cu-ft Cargo Bed
- 400-lb Bed Load Capacity
- 800-lb Vehicle Load Capacity
- Zero Maintenance Batteries
- 5-Year Battery Warranty
- Lightweight Footprint
- 725-lb Vehicle Load Capacity

Specifications

Battery (Qty/Type):	Two Lithium Ion 56 Volt
Bed Load Capacity:	400 lb (181 kg)
Body &amp;amp; Finish:	Injection Molded TPO (front), Injection Molded PP (rear)
Cargo Deck Capacity:	8.4 cu ft (0.24 m3)
Curb Weight:	803 lb (364 kg)
Drive Train:	Motor Shaft Direct Drive
Electrical System:	56-Volt
Frame:	Welded steel with E-Shield ecoat plus DuraShield™ powder coat
Gear Selection:	Dash Mount Forward-Neutral-Reverse
Ground Clearance:	4.3 in (11 cm)
Horsepower (KW):	11.7 HP (8.7 kW) Peak
Key or Pedal Start:	Pedal
Outside Clearance Circle:	18.9 ft (5.76 m)
Overall Height:	47 in (120 cm)
Overall Length:	110 in (280 cm)
Overall Width:	49 in (125 cm)
Parking Brake:	Self-compensating, Single Point Engagement
Power Source:	56-Volt AC Drive
Rear Axle Ratio:	16.99:1
Seating Capacity:	2 Person
Service Brake:	Rear Wheel Mechanical Self-adjusting Drum
Speed:	14.5 +/-0.5 mph (23.3 +/- 0.8 kph)
Standard Color:	Forest Green or Patriot Blue
Steering:	Self-Compensating Rack and Pinion
Suspension:	Leaf Springs with Hydraulic Shock Absorbers
Tires:	18 x 8.5 - 8 (6 ply rated)
Towing Capacity:	900 lb (408 kg)
Transaxle:	Differential with Helical Gears
Vehicle Load Capacity:	800 lb (360 kg)
Wheel Base:	65.5 in (166 cm)
Wheel Track:	37.0 in (94 cm) Front / 38.0 in (97 cm) Rear

Downloads & Documentation
Links
- Hauler 800 ELiTE Series Sell Sheet

Details

Model Table

	Hauler 800 ELiTE	Hauler 800X ELiTE
Overall Height	47 in (120 cm)	51 in (130 cm)
Ground Clearance	4.3 in (11 cm)	5.5 in (14 cm)
Curb Weight	803 lb (364 kg)	797 lb (361 kg)
Vehicle Load Capacity	800 lb (360 kg)	725 lb (328 kg)
Bed Load Capacity	400 lb (181 kg)	325 lb (147.4 kg)
Towing Capacity	900 lb (408 kg)	500 lb (230 kg)
Speed	14.5 +/-0.5 mph (23.3 +/- 0.8 kph)	16.5 mph ± 0.5 mph (26.5 kph ± 0.8 kph)
Steering	Self-Compensating Rack and Pinion	Self-Compensating Rack and Pinion
