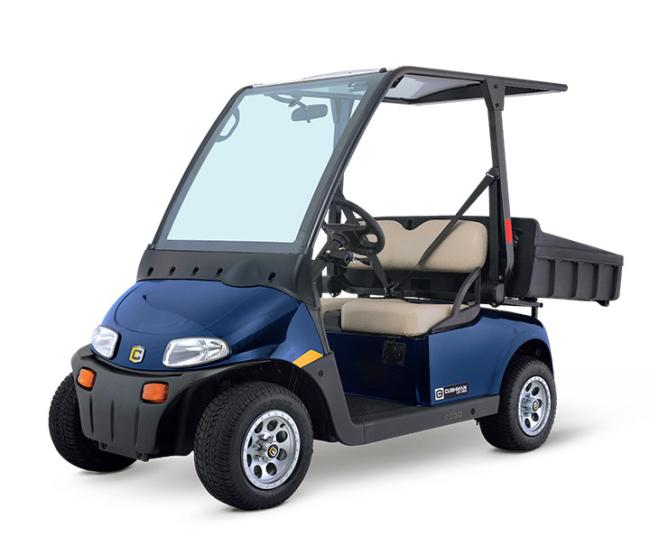

Cushman LSV 800
Crawler Dozers
How can we help?
(555) 555-5555
Features
-
2-Passenger Seating
-
5.9-cu-ft Cargo Bed
-
800-lb Vehicle Load Capacity
-
48V AC Electric Drivetrain
Specifications
Battery (Qty/Type): |
Six, 8V Deep Cycle, US Batteries |
Battery Charger: |
On-board 48V PowerWise™ High Frequency |
Body & Finish: |
Injection Molded TPO & Automotive Style Paint |
Cargo Deck Capacity: |
300 lb (136 kg) |
Cargo Deck Material: |
Roto-molded Cross-linked Polyethylene |
Curb Weight: |
1381 lb (626 kg) |
Drive Train: |
Motor Shaft Direct Drive |
Electrical System: |
48V |
Frame: |
Welded Steel w/ DuraShield™ Powder Coat |
Ground Clearance: |
4.5 in (11 cm) |
Horsepower (KW): |
4.4 hp (3.3 kW) |
Key or Pedal Start: |
Pedal |
Outside Clearance Circle: |
19.7 ft (6.0 m) |
Overall Height: |
71.2 in (181 cm) (w/ OPS Roof) 75.2 in (191 cm) (w/ Strobe) |
Overall Length: |
109.0 in (277 cm) |
Overall Width: |
48.5 in (123 cm) |
Parking Brake: |
Automatically Applied Electromagnetic |
Power Source: |
48V AC Induction Motor |
Rear Axle Ratio: |
14.76:1 (Forward) |
Seating Capacity: |
2-Person (Bucket Seats) |
Service Brake: |
4-Wheel Hydraulic Disc w/ Motor Regen |
Speed: |
25 mph +/- 0.5 mph (40 kph +/-0.8 kph) |
Speed Controller: |
235 Amp AC Controller |
Standard Color: |
Patriot Blue |
Steering: |
Double Ended Rack & Pinion |
Suspension: |
Independent A-Arm w/ Coil Over Shocks (Front) Mono-Leaf Springs w/ Hydraulic Shocks (Rear) |
Tires: |
DOT Street Legal 205-50-10 Radial |
Towing Capacity: |
1800 lb (816 kg) Max Load |
Transaxle: |
Helical Gears |
Vehicle Load Capacity: |
800 lb (363 kg) |
Weight w/o Batteries: |
893 lb (405 kg) |
Wheel Base: |
65.9 in (167 cm) |
Wheel Track: |
36.7 in (93 cm) Front 39.7 in (101 cm) Rear |
Model Table
| LSV 800 | |
|---|---|
| Frame | Welded Steel w/ DuraShield™ Powder Coat |
| Body & Finish | Injection Molded TPO & Automotive Style Paint |
| Standard Color | Patriot Blue |
| Overall Length | 109.0 in (277 cm) |
| Overall Width | 48.5 in (123 cm) |
| Overall Height | 71.2 in (181 cm) (w/ OPS Roof) 75.2 in (191 cm) (w/ Strobe) |
| Wheel Base | 65.9 in (167 cm) |
| Wheel Track | 36.7 in (93 cm) Front 39.7 in (101 cm) Rear |
| Ground Clearance | 4.5 in (11 cm) |
| Cargo Deck Capacity | 300 lb (136 kg) |
| Cargo Deck Material | Roto-molded Cross-linked Polyethylene |
| Power Source | 48V AC Induction Motor |
| Horsepower (KW) | 4.4 hp (3.3 kW) |
| Electrical System | 48V |
| Battery (Qty/Type) | Six, 8V Deep Cycle, US Batteries |
| Battery Charger | On-board 48V PowerWise™ High Frequency |
| Key or Pedal Start | Pedal |
| Speed Controller | 235 Amp AC Controller |
| Drive Train | Motor Shaft Direct Drive |
| Transaxle | Helical Gears |
| Rear Axle Ratio | 14.76:1 (Forward) |
| Seating Capacity | 2-Person (Bucket Seats) |
| Weight w/o Batteries | 893 lb (405 kg) |
| Curb Weight | 1381 lb (626 kg) |
| Vehicle Load Capacity | 800 lb (363 kg) |
| Bed Load Capacity | 300 lb (136 kg) |
| Towing Capacity | 1800 lb (816 kg) Max Load |
| Outside Clearance Circle | 19.7 ft (6.0 m) |
| Speed | 25 mph +/- 0.5 mph (40 kph +/-0.8 kph) |
| Steering | Double Ended Rack & Pinion |
| Suspension | Independent A-Arm w/ Coil Over Shocks (Front) Mono-Leaf Springs w/ Hydraulic Shocks (Rear) |
| Service Brake | 4-Wheel Hydraulic Disc w/ Motor Regen |
| Parking Brake | Automatically Applied Electromagnetic |
| Tires | DOT Street Legal 205-50-10 Radial |
