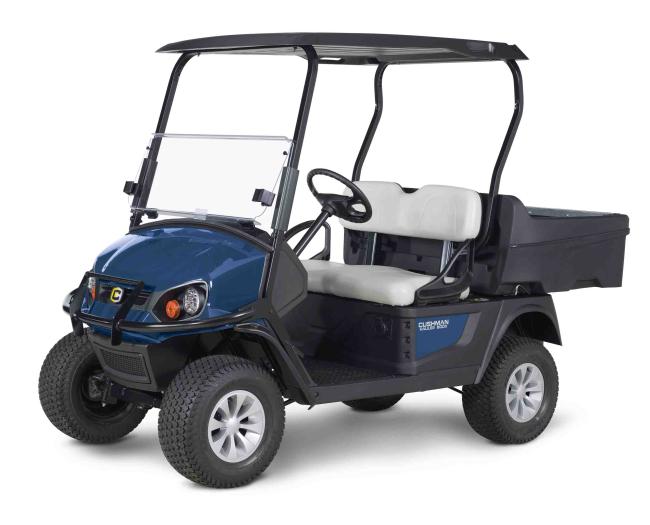

Cushman Hauler 800X
Crawler Dozers
How can we help?
(555) 555-5555
Features
-
48V AC Electric Drivetrain
-
2-Passenger Seating
-
13.5-hp EFI Gas Engine
-
725-lb Vehicle Load Capacity
-
325-lb Bed Load Capacity
-
8.4-cu-ft Cargo Bed
Specifications
Air Cleaner: |
Replaceable Dry Cartridge |
Battery (Qty/Type): |
One, 12V Maintenance Free |
Battery Charger: |
- |
Bed Load Capacity: |
325 lb (147.4 kg) |
Body & Finish: |
Injection Molded TPO (Front) / Injection Molded PP (Rear) |
Cargo Deck Capacity: |
8.4 cu ft (0.24 m3) |
Cargo Deck Material: |
Roto-Molded Polyethylene |
Cooling System: |
Air Cooled |
Curb Weight: |
830 lb (376 kg) |
Drive Train: |
Continuously Variable Transmission (CVT) |
Electrical System: |
Starter/Generator. Solid State Reg. |
Frame: |
Welded Steel w/ E-Shield e-coat plus DuraShield™ Powder Coat |
Fuel Capacity: |
5.6 Gallon (21.2 L) Tank |
Gear Selection: |
Forward - Reverse |
Ground Clearance: |
5.5 in (14.0 cm) |
Horsepower (KW): |
13.5 hp (10.1 kW) |
Key or Pedal Start: |
Pedal |
Lubrication: |
Pressurized Oil System |
Oil Filter: |
Spin-On |
Outside Clearance Circle: |
18.9 ft (5.8 m) |
Overall Height: |
51 in (129.5 cm) ( w/o Roof) / 74 in (188 cm) (w/ Canopy) |
Overall Length: |
110 in (279.4 cm) |
Overall Width: |
49 in ( 125 cm) |
Parking Brake: |
Self-Compensating,Single-Point Engagement |
Power Source: |
4-Cycle, 24.5 ci (401cc) Cylinder |
Rear Axle Ratio: |
11.47: 1 (Forward) 14.53: 1 (Reverse) |
Seating Capacity: |
2-Person |
Service Brake: |
Rear Wheel Mechanical, Self-Adjusting Drum |
Speed: |
16.5 mph ± 0.5 mph (26.5 kph ± 0.8 kph) |
Standard Color: |
Patriot Blue, Forest Green |
Steering: |
Self-Compensating Rack & Pinion |
Suspension: |
Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) |
Tires: |
20 x 8-10 (6 Ply Rated) |
Towing Capacity: |
500 lb (226.8 kg) Max Load |
Transaxle: |
Differential w/ Helical Gears |
Valve Train: |
Single Cylinder OHV |
Vehicle Load Capacity: |
725 lb (328.9 kg) |
Weight w/o Batteries: |
800 lb (362.9 kg) |
Wheel Base: |
65.5 in (166.4 cm) |
Wheel Track: |
37 in (94.0 cm) Front / 38 in (96.5 cm) Rear |
Links
Model Table
| Hauler 800X EFI Gas | Hauler 800X Electric | |
|---|---|---|
| Ground Clearance | 5.5 in (14.0 cm) | 5.5 in (14 cm) |
| Power Source | 4-Cycle, 24.5 ci (401cc) Cylinder | 48V AC |
| Valve Train | Single Cylinder OHV | - |
| Horsepower (KW) | 13.5 hp (10.1 kW) | 4.4 hp (3.3 kW) Continuous |
| Electrical System | Starter/Generator. Solid State Reg. | 48V |
| Battery (Qty/Type) | One, 12V Maintenance Free | Six, 8V Deep Cycle |
| Battery Charger | - | 48V DC PowerWise QE, 120V AC, UL/CSA |
| Air Cleaner | Replaceable Dry Cartridge | - |
| Lubrication | Pressurized Oil System | - |
| Oil Filter | Spin-On | - |
| Cooling System | Air Cooled | - |
| Fuel Capacity | 5.6 Gallon (21.2 L) Tank | - |
| Speed Controller | - | 235 Amp AC Controller |
| Drive Train | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
| Gear Selection | Forward - Reverse | Dash-Mounted Forward-Neutral-Reverse |
| Rear Axle Ratio | 11.47: 1 (Forward) 14.53: 1 (Reverse) | 16.99: 1 |
| Weight w/o Batteries | 800 lb (362.9 kg) | 756 lb (342.9 kg) |
| Curb Weight | 830 lb (376 kg) | 1122 lb (508.9 kg) |
| Towing Capacity | 500 lb (226.8 kg) Max Load | 500 lb (227 kg) Max Load |
| Outside Clearance Circle | 18.9 ft (5.8 m) | 18.9 ft (5.8 m) |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) | Leaf Springs w/ Hydraulic Shock Absorbers |
